Installation Procedure

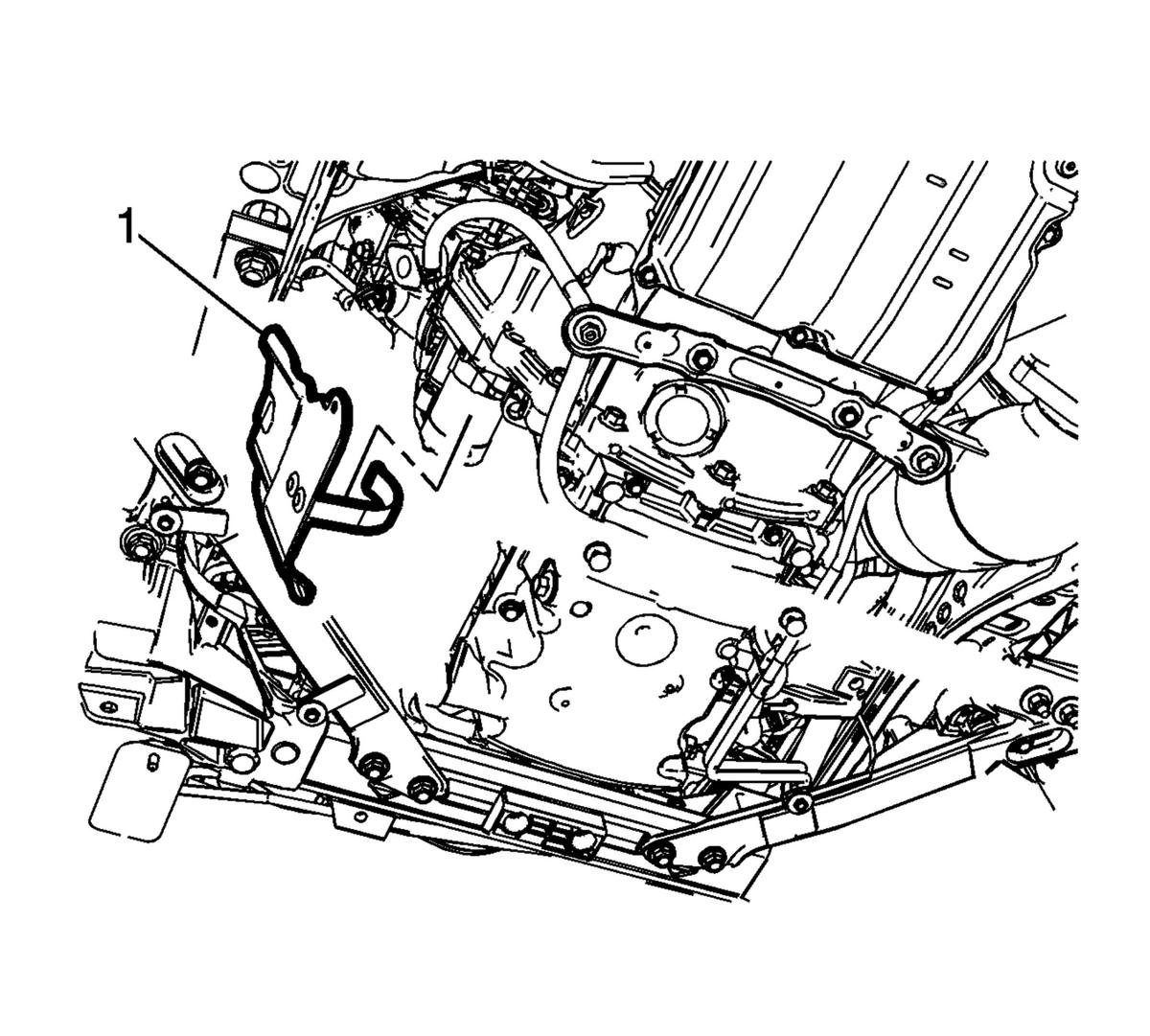

Fig 1: Starter Heat Shield

GM3553871

Courtesy of GENERAL MOTORS COMPANY

Position the starter shield (1), to the starter, with the retaining clip.

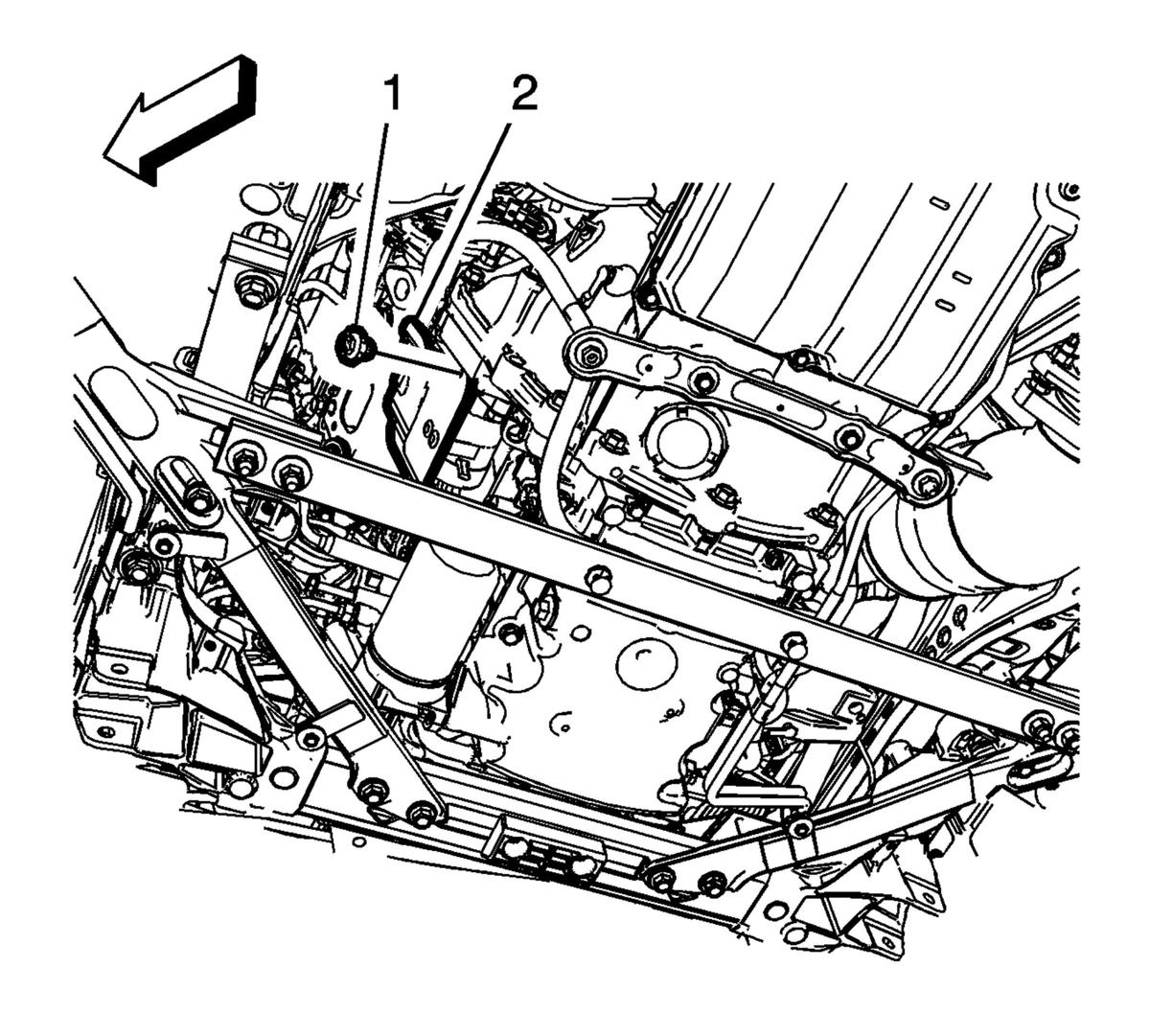

Fig 2: Starter Shield Fastener

GM3553870

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Install the starter shield fastener (1) and tighten to 4.7 N.m (42 lb in).
Lower the vehicle.
