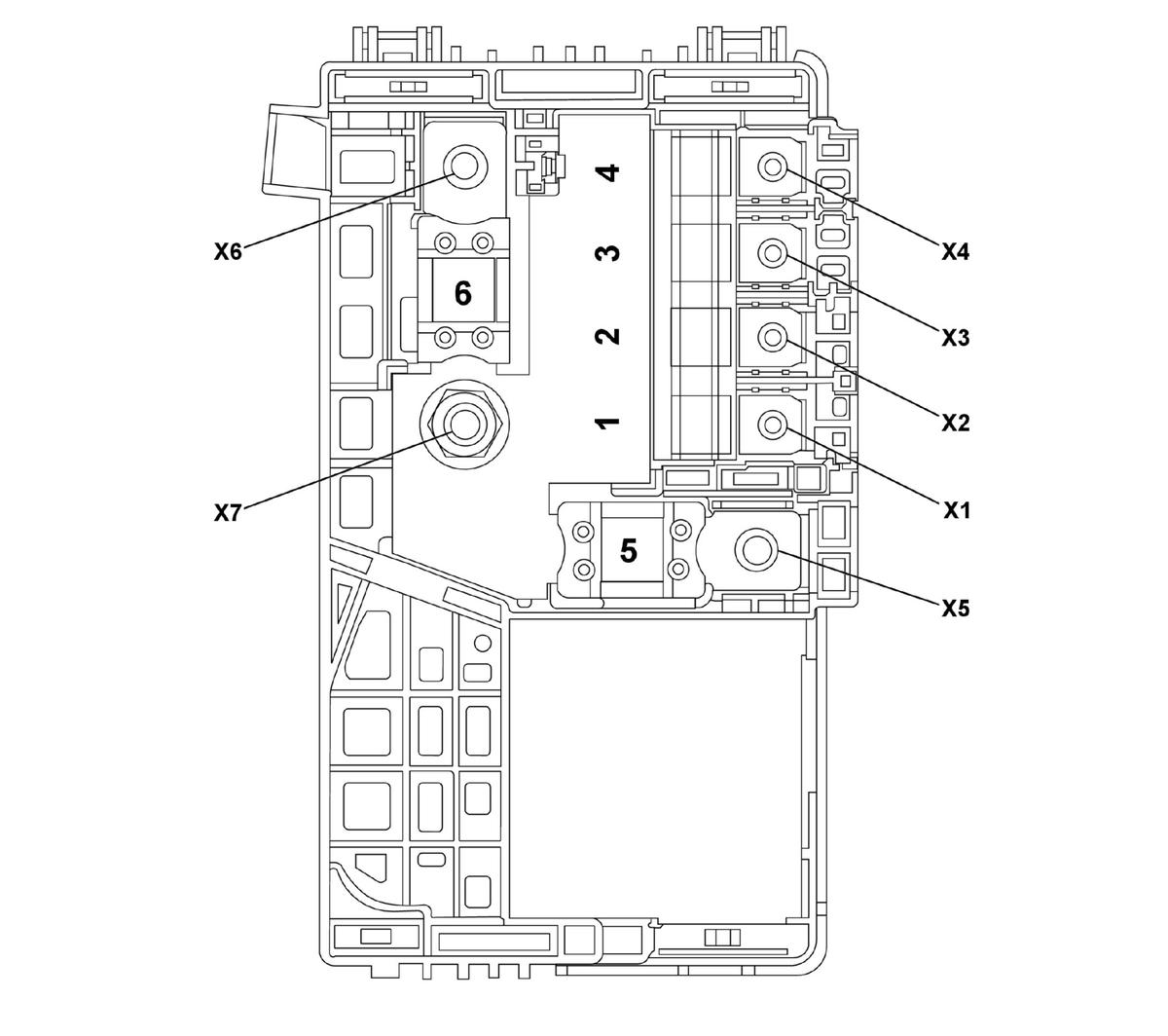

X50D Fuse Block - Battery Top View
X50D FUSE BLOCK - BATTERY FUSE IDENTIFICATION
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | F1RB Fuse | 60A | X53A Fuse Block - Rear Body |
| 2 | - | F2RB Fuse | 60A | X53A Fuse Block - Rear Body |
| 3 | - | F3RB Fuse | 100A | Not Used |
| 4 | - | F4RB Fuse | 70A | Not Used |
| 5 | - | F5RB Fuse | 250A | Not Used |
| 6 | - | F6RB Fuse | 350A | X50B Fuse Block - Underhood Auxiliary, M64 Starter Motor |
