Component Locator - Electrical Center Identification Views
›
Electrical Center Identification Views
›
X51A Fuse Block - Instrument Panel Label
X51A Fuse Block - Instrument Panel Label

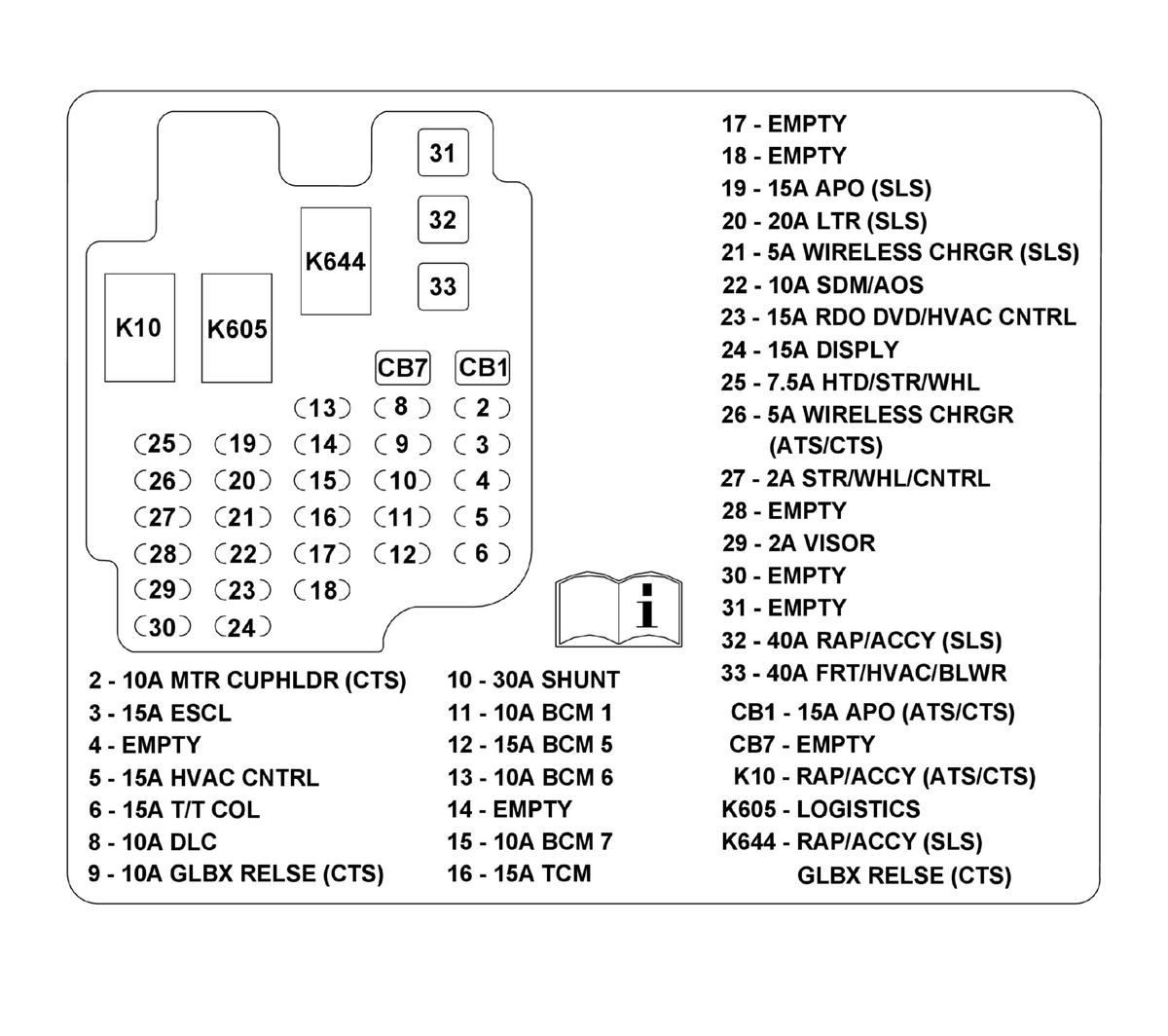

Fig 1: X51A Fuse Block - Instrument Panel Label
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
