Vehicle Performance Data Recorder Replacement

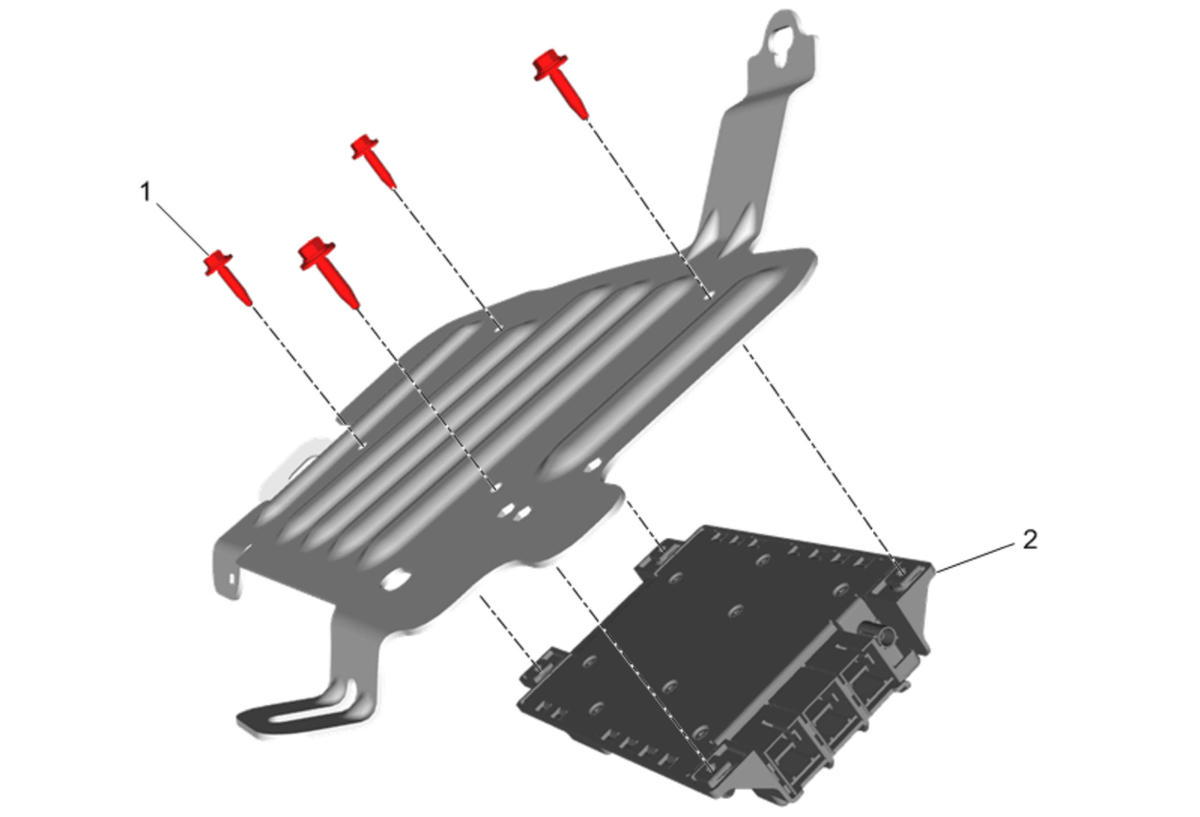

Fig 1: Vehicle Performance Data Recorder

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Vehicle Performance Data Recorder Bracket Replacement
1	Vehicle Performance Data Recorder Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  1 N.m (9 lb in)
2	Vehicle Performance Data Recorder
