Exhaust System Wiring Schematics
›
Engine Exhaust Flow Control
Engine Exhaust Flow Control

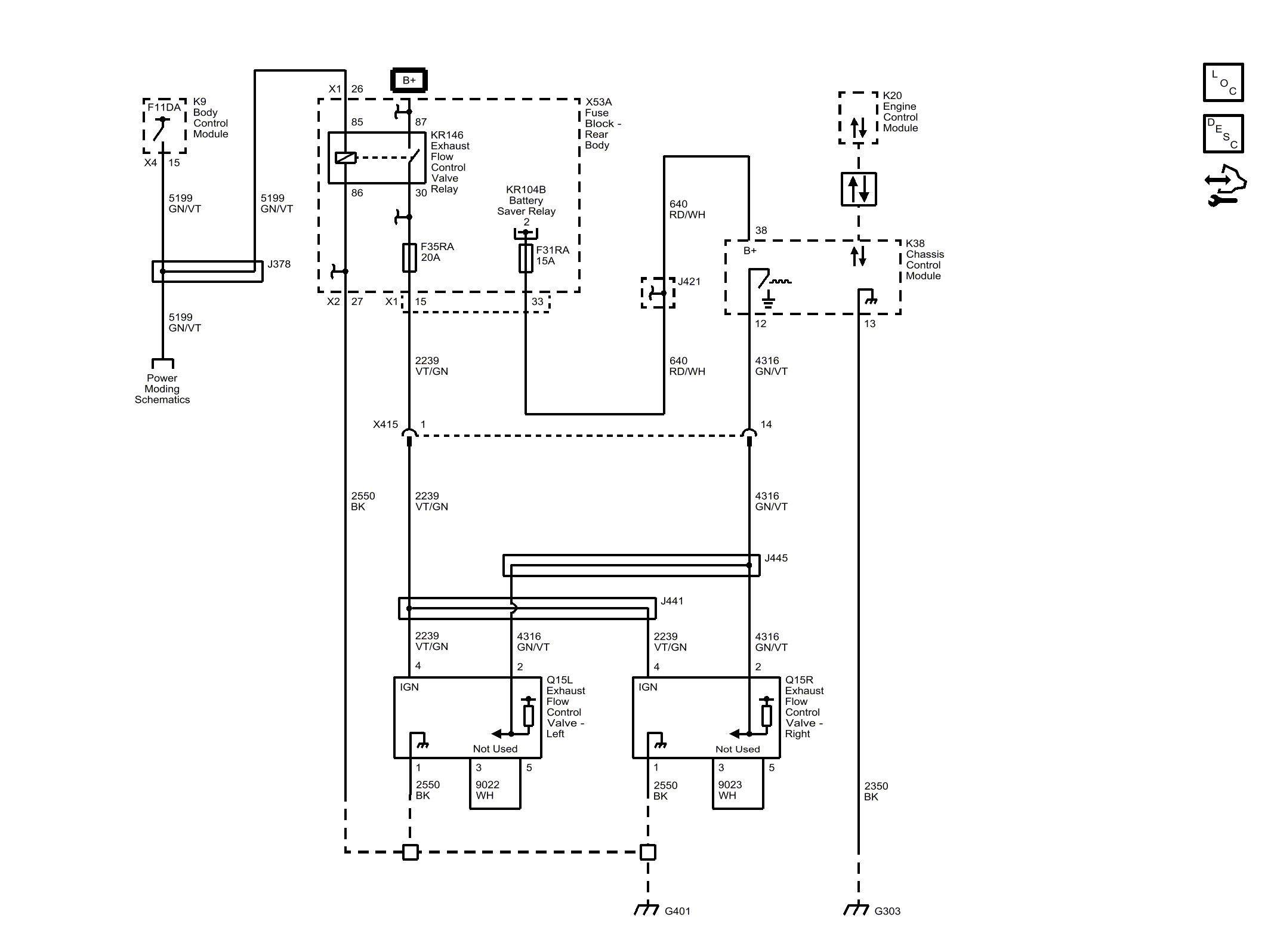

Fig 1: Engine Exhaust Flow Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
