Air Cleaner Element Replacement

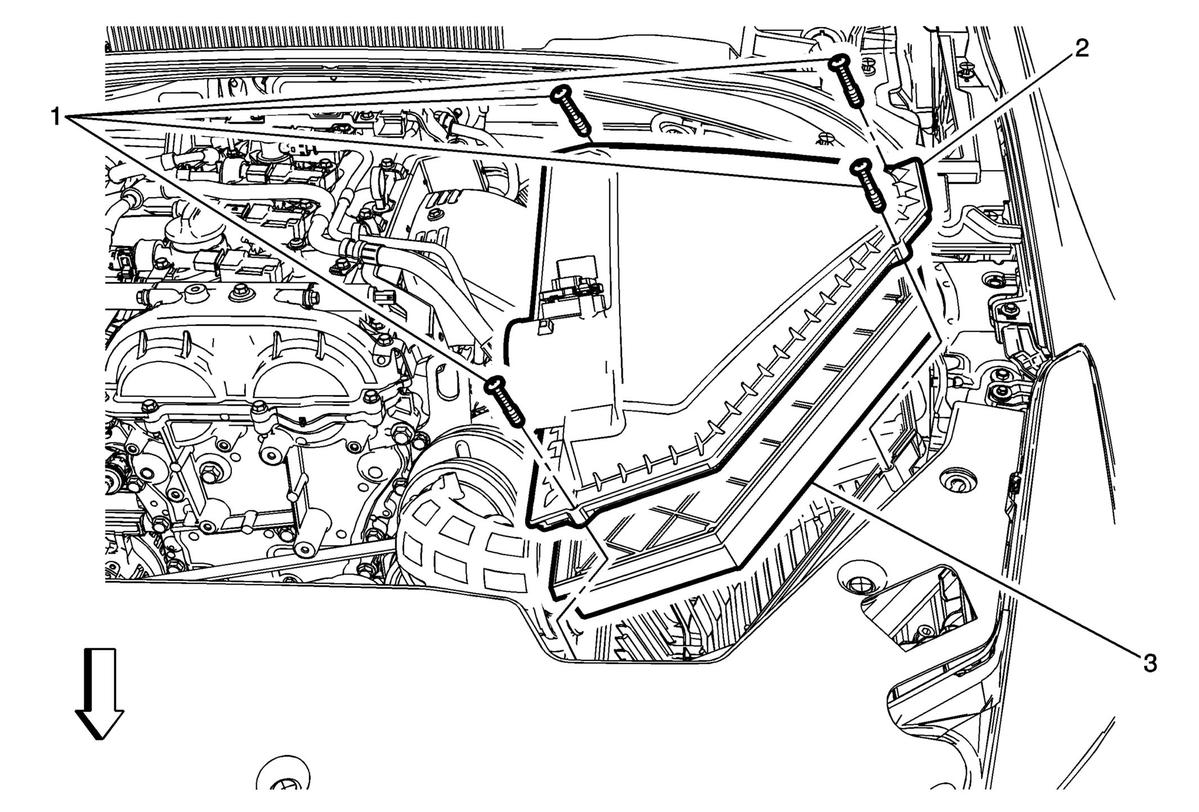

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Cleaner Assembly Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.3 N.m (20.4 lb in)
2	Air Cleaner Upper Cover
3	Air Cleaner Element
