Camshaft Position Sensor Replacement - Exhaust

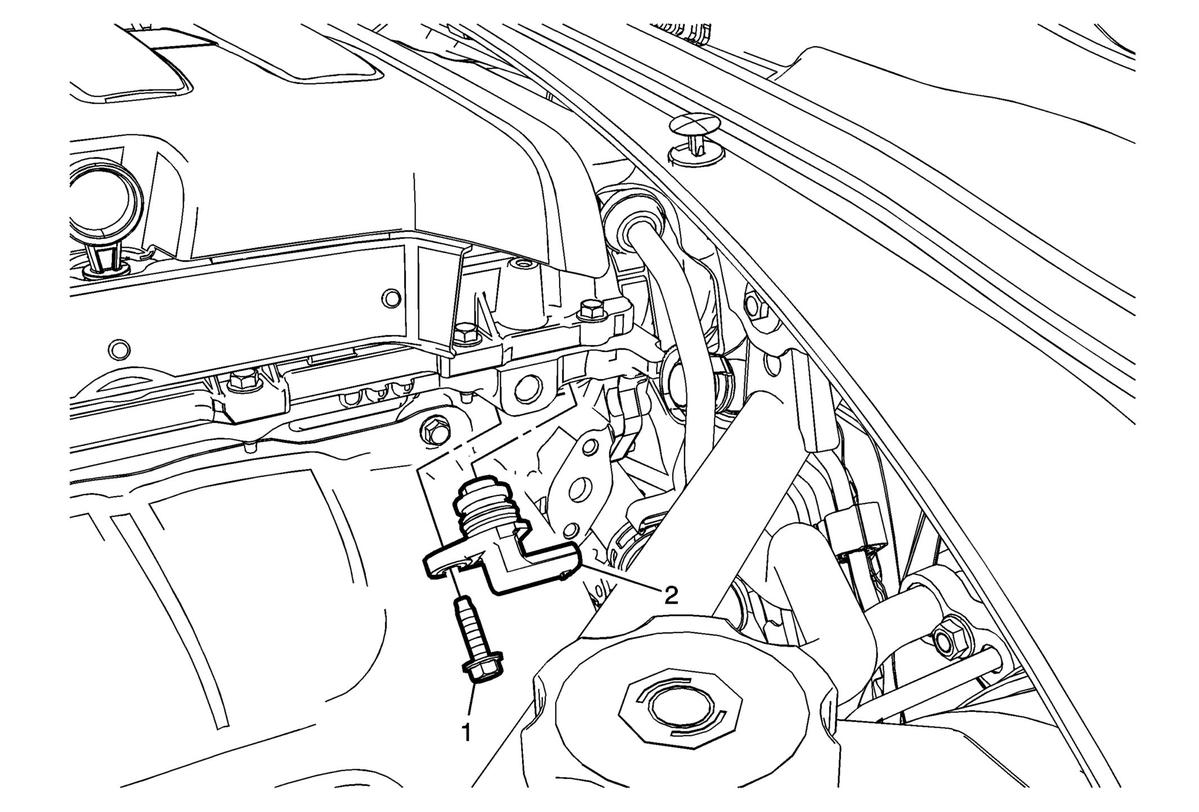

Fig 1: Camshaft Position Sensor - Exhaust

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the Camshaft Cover Heat Shield. Refer to Camshaft Cover Heat Shield Replacement .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the electrical wiring harness connector from the camshaft position sensor.
