Camshaft Position Sensor Replacement - Intake

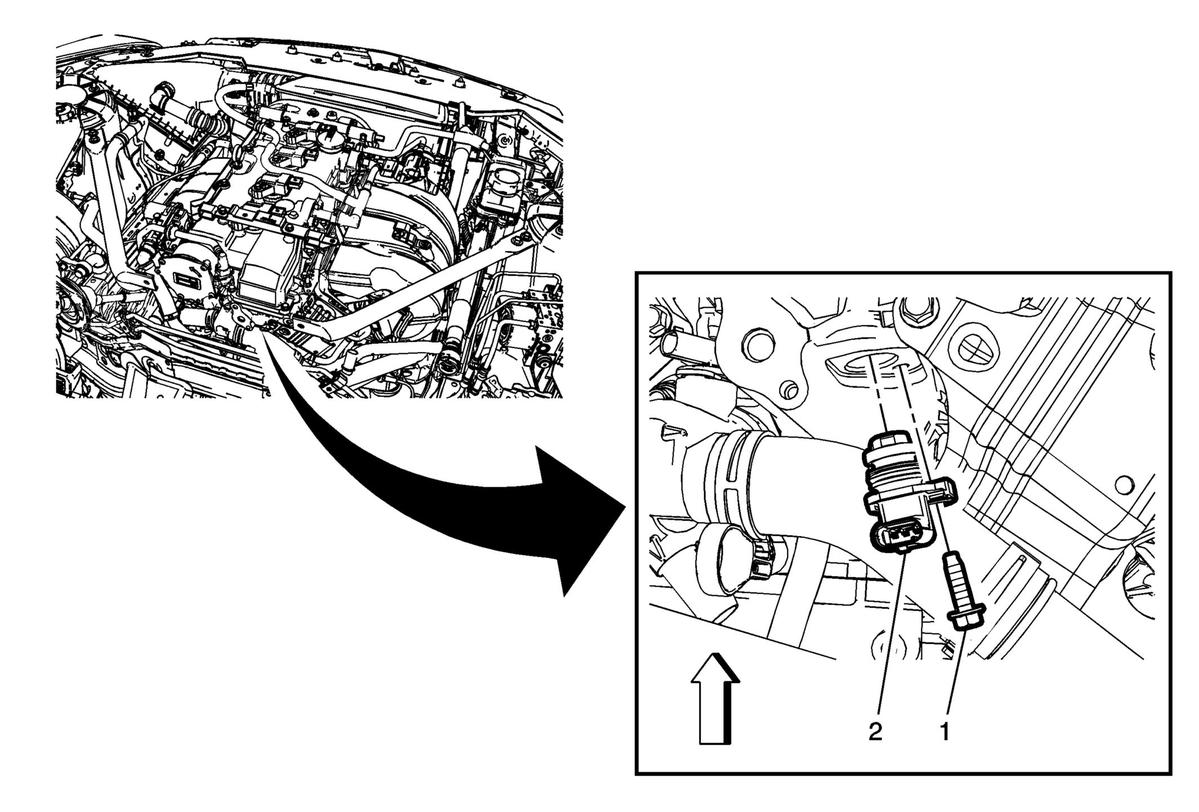

Fig 1: Camshaft Position Sensor - Intake

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the plenum front panel. Refer to Plenum Front Panel Replacement . Remove the fuel pump insulator. Refer to Fuel Pump Insulator Replacement (Inner) Fuel Pump Insulator Replacement (Outer) .
1	Camshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Camshaft Position Sensor Procedure Disconnect the electrical wiring harness connector from the camshaft position sensor.

Callout

Component Name

Preliminary Procedure

Camshaft Position Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Camshaft Position Sensor
Procedure
Disconnect the electrical wiring harness connector from the camshaft position sensor.
