Charge Air Cooler Radiator Replacement

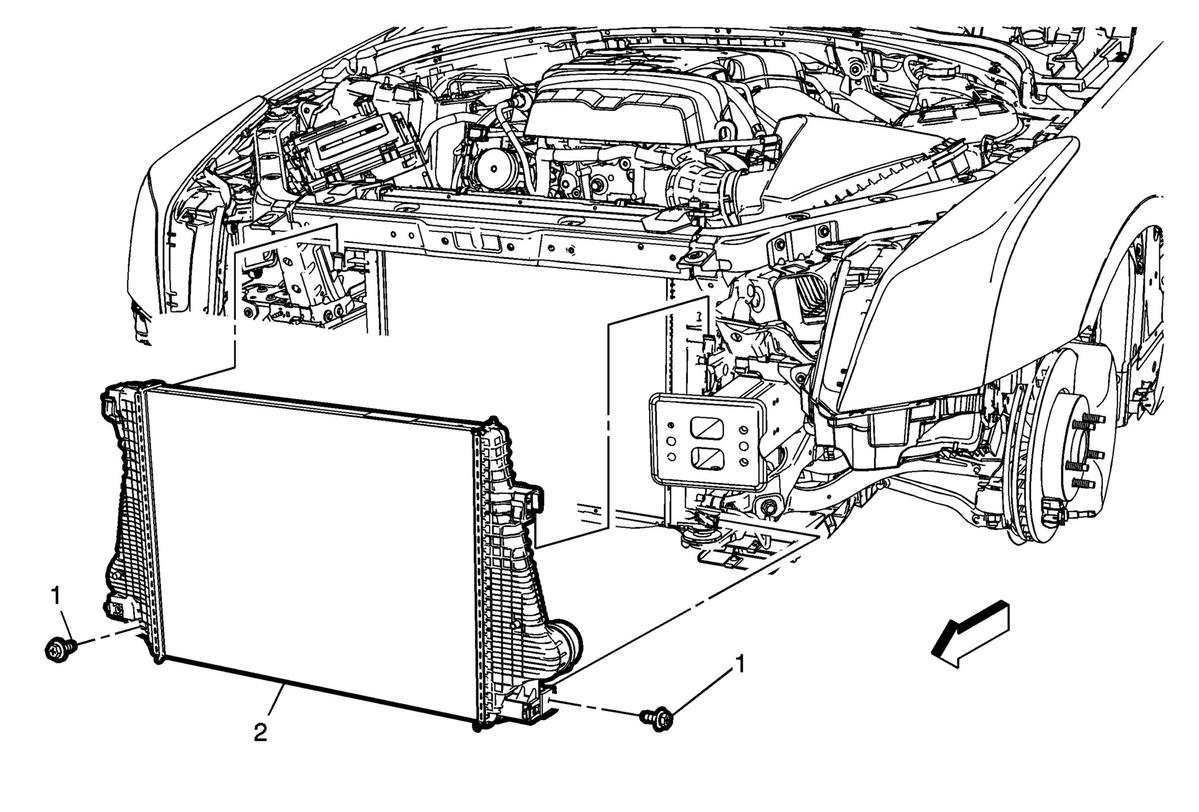

Fig 1: Charge Air Cooler Radiator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the air conditioning condenser. Refer to Air Conditioning Condenser Replacement (LTG without V03)Air Conditioning Condenser Replacement (LTG with V03) . Remove the charge air cooler inlet air tube. Refer to Charge Air Cooler Inlet Air Tube Replacement . Remove the charge air cooler outlet air tube. Refer to Charge Air Cooler Outlet Air Tube Replacement .
1	Charge Air Cooler Radiator Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Cooler Radiator

Callout

Component Name

Preliminary Procedure

Charge Air Cooler Radiator Bolts (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Charge Air Cooler Radiator
