Backup Lamp Replacement

WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

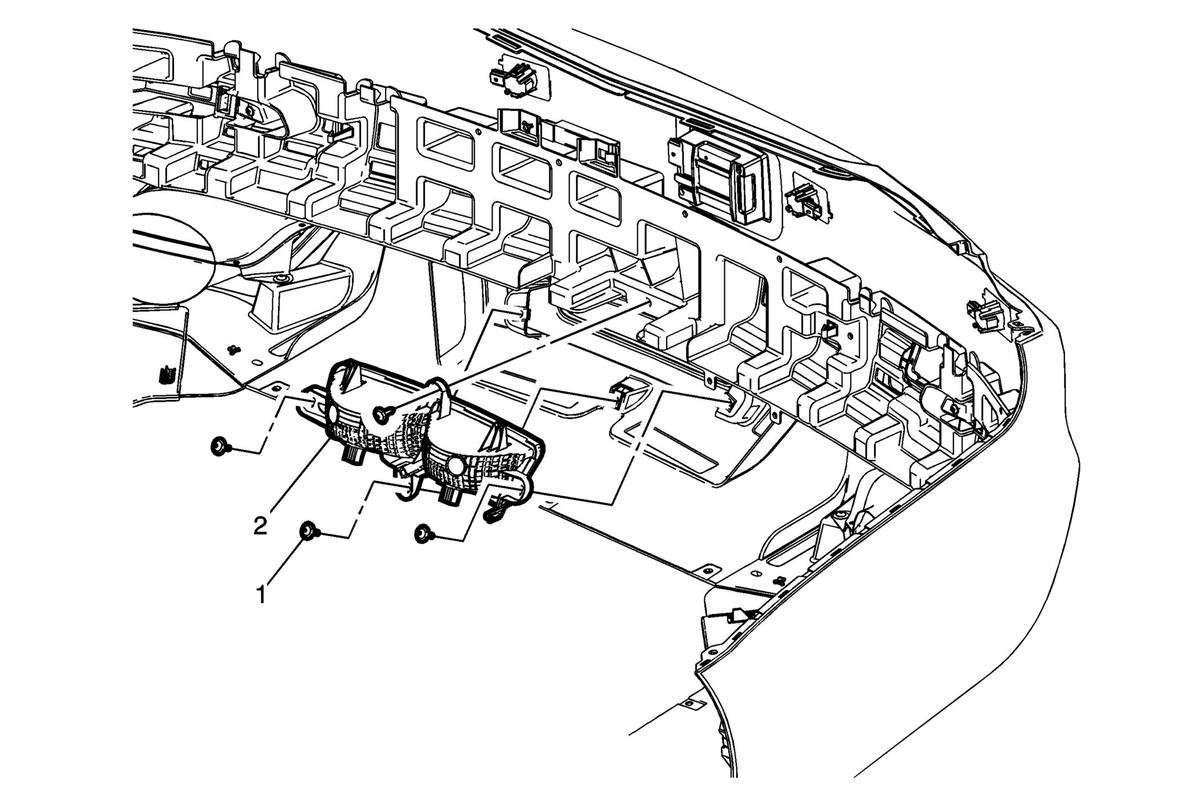

Fig 1: Backup Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Backup Lamp Screw (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Backup Lamp Procedure Disconnect the electrical connector. Remove backup lamp from rear bumper fascia.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Backup Lamp Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Backup Lamp

Procedure

Disconnect the electrical connector.
Remove backup lamp from rear bumper fascia.
