Sunroof Switch Replacement
WARNING: This page is about a different car, the 2016 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

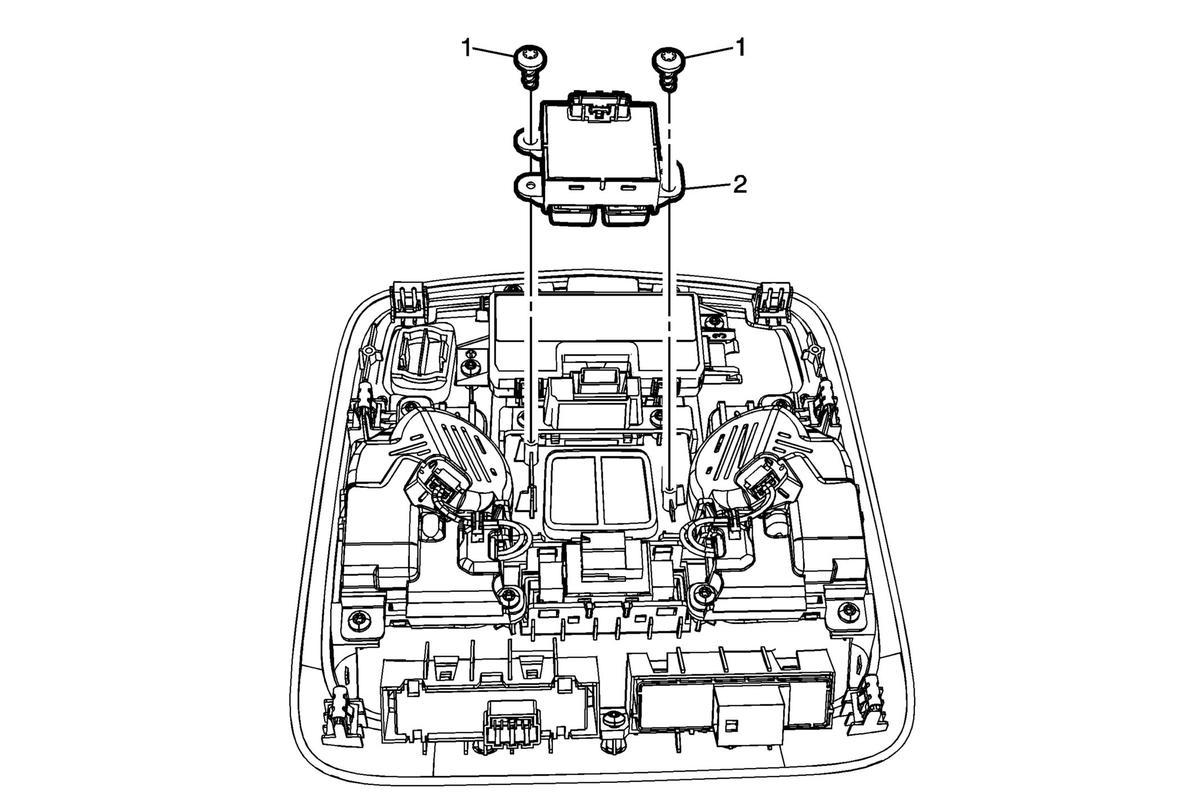

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement . |
|
| 1 | Sunroof Switch Fasteners (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tighten 0.5 N.m (4 lb in) |
| 2 | Sunroof Switch |
