Seat Belt System Description and Operation: Notes

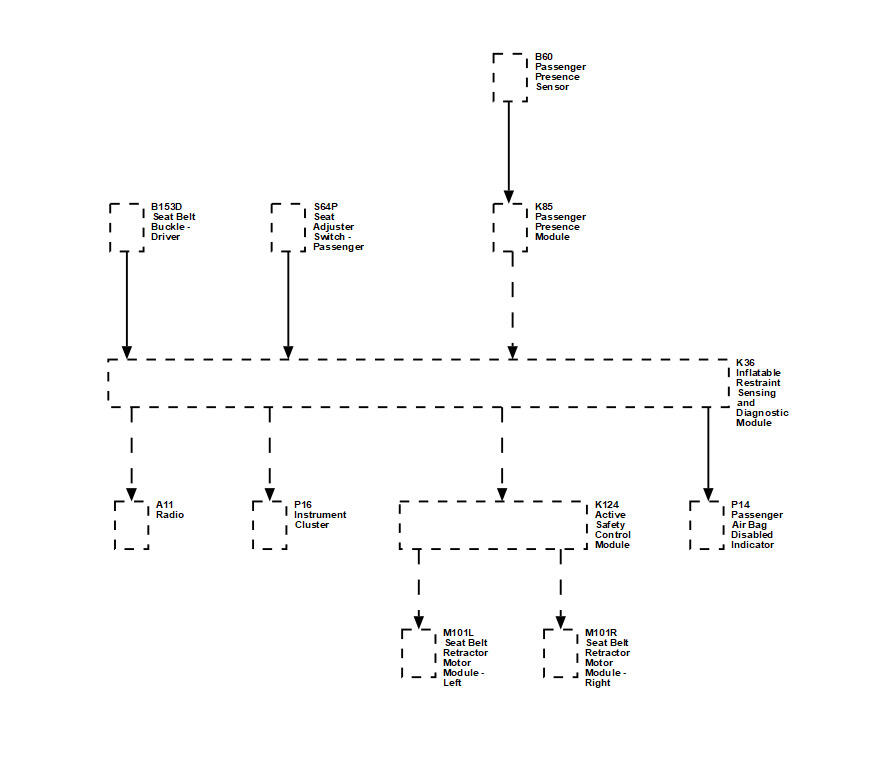

Fig 1: Seat Belt System Description and Operation

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
B60	B60 Passenger Presence Sensor
B153D	B153D Seat Belt Buckle - Driver
S64P	S64P Seat Adjuster Switch - Passenger
K85	Passenger Presence Module
K36	K36 Inflatable Restraint Sensing and Diagnostic Module
A11	A11 Radio
P16	P16 Instrument Cluster
K124	Active Safety Control Module
M101L	Seat Belt Retractor Motor Module - Left
M101R	Seat Belt Retractor Motor Module - Right
P14	P14 Passenger Air Bag Disabled Indicator
