Rearview Driver Information Camera Replacement (With DRZ)

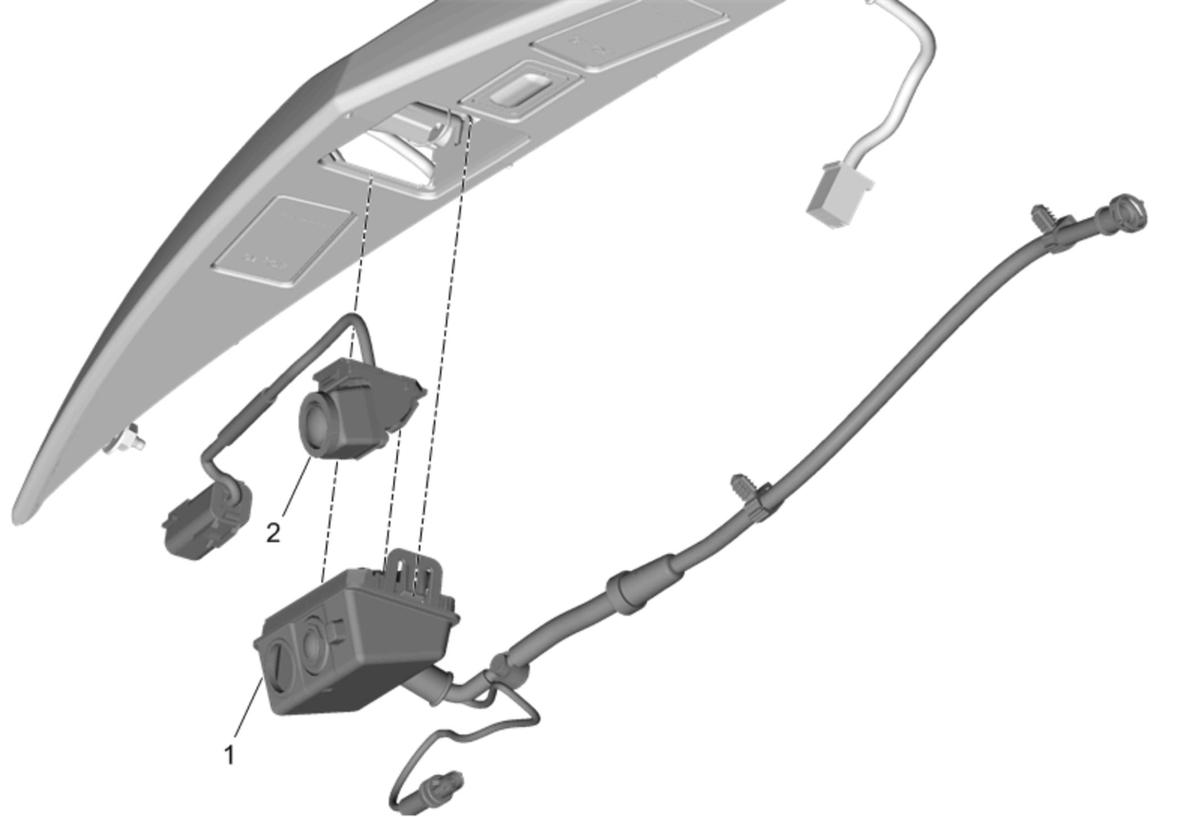

Fig 1: Rearview Driver Information Camera (With DRZ)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Closure Center Applique Replacement
1	Rearview Driver Information Camera Procedure Disconnect the electrical connectors. Release the retaining tabs.
2	Rearview Driver Information Camera Procedure Use a small flat bladed tool to remove the camera.

Callout

Component Name

Rearview Driver Information Camera

Procedure

Rearview Driver Information Camera
Procedure
Use a small flat bladed tool to remove the camera.
