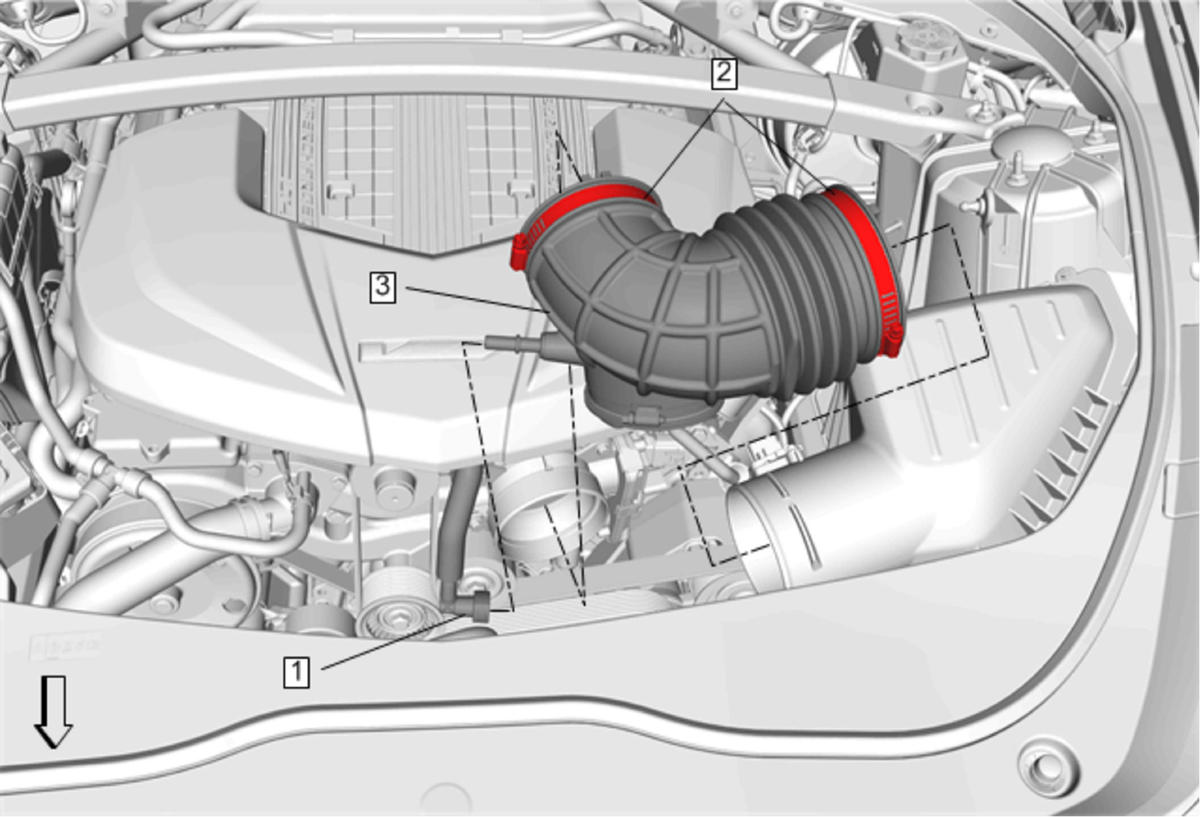

Air Cleaner Outlet Duct Replacement
| Callout | Component Name |
|---|---|
| 1 | PCV Tube Procedure Disconnect PCV Tube at Air Cleaner Outlet Duct - Plastic Collar Quick Connect Fitting Service |
| 2 | Air Cleaner Outlet Duct Clamp (Qty: 2)
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 4 N.m (35 lb in) |
| 3 | Air Cleaner Outlet Duct |
