Installation Procedure

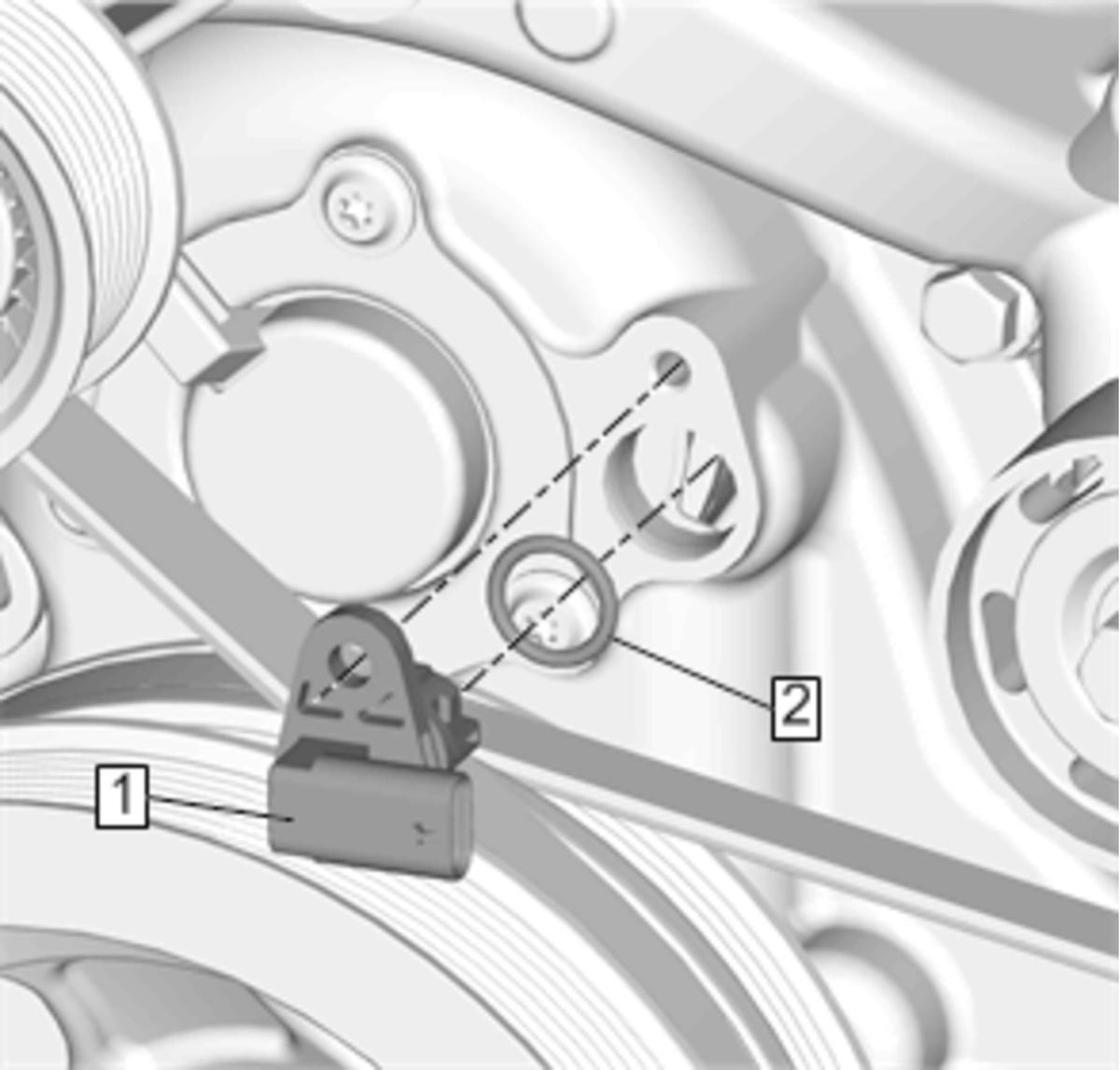

- Install the NEW O-ring seal (2)
- Install the camshaft position sensor (1) into the engine front cover.

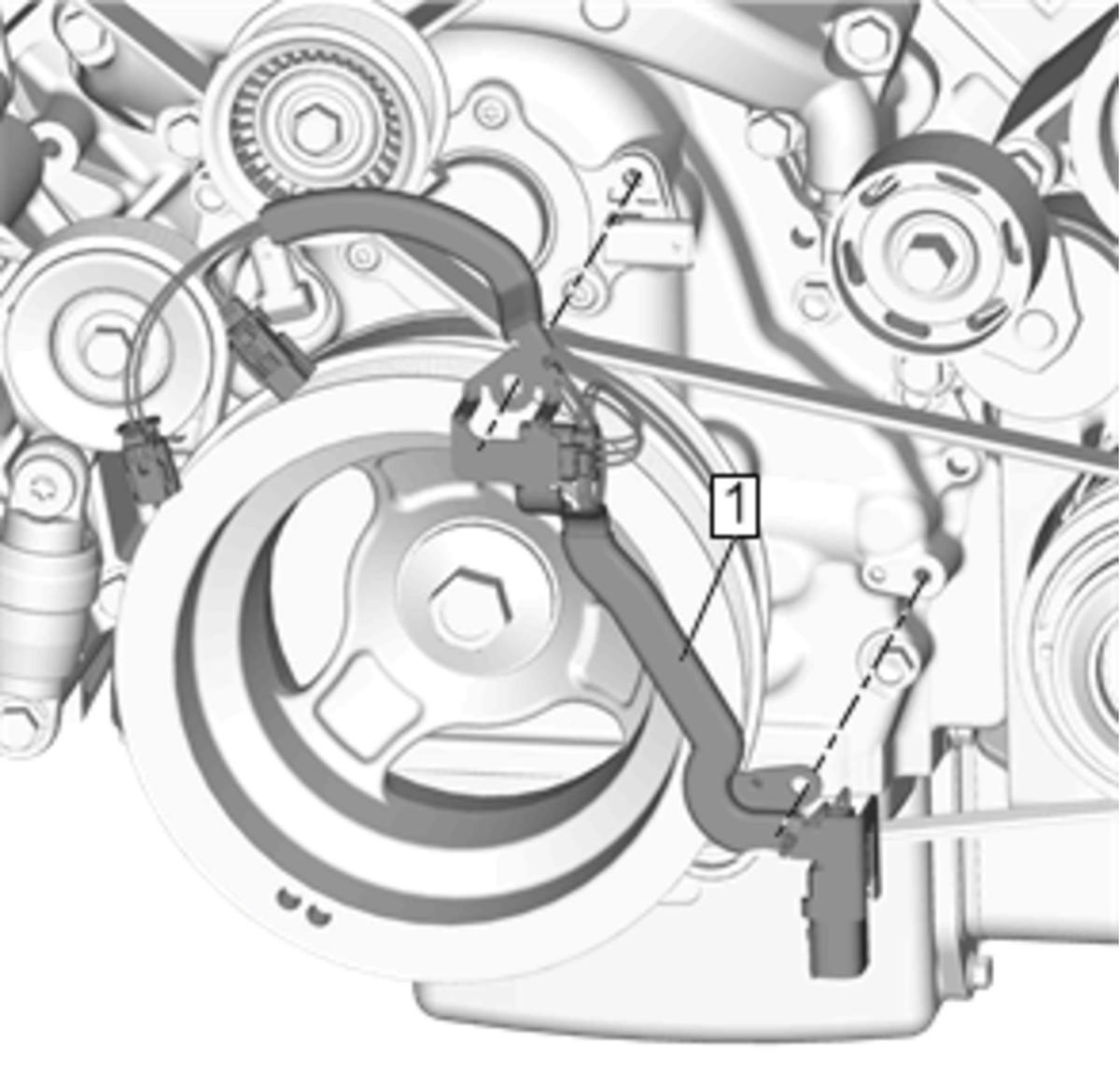

- Position the camshaft position sensor bracket and sensor wiring harness (1) in place.

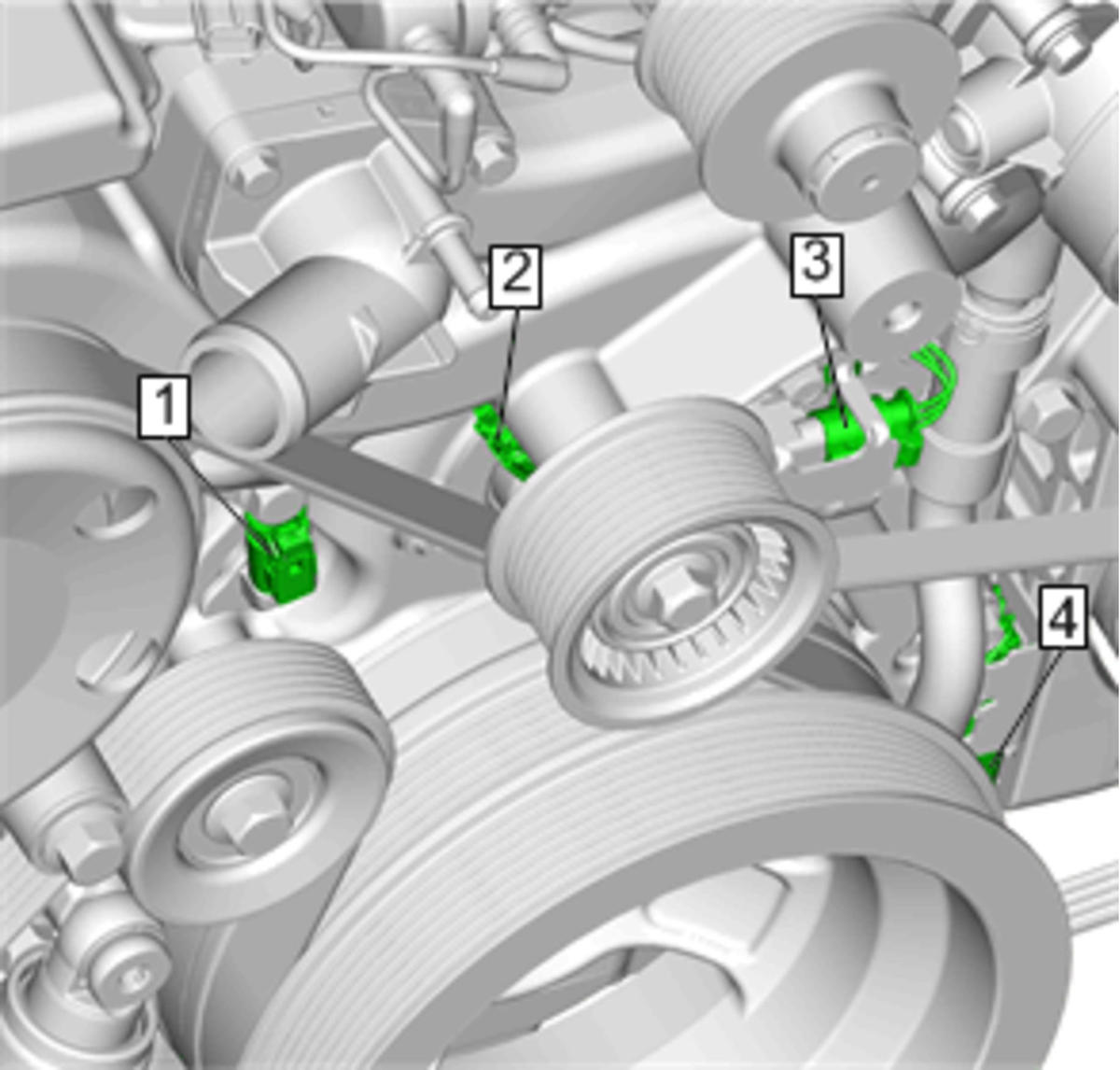

- Connect the oil pump flow control valve connector (1), camshaft position actuator solenoid connector (2), camshaft position sensor connector (3), and the engine wiring harness connector (4).

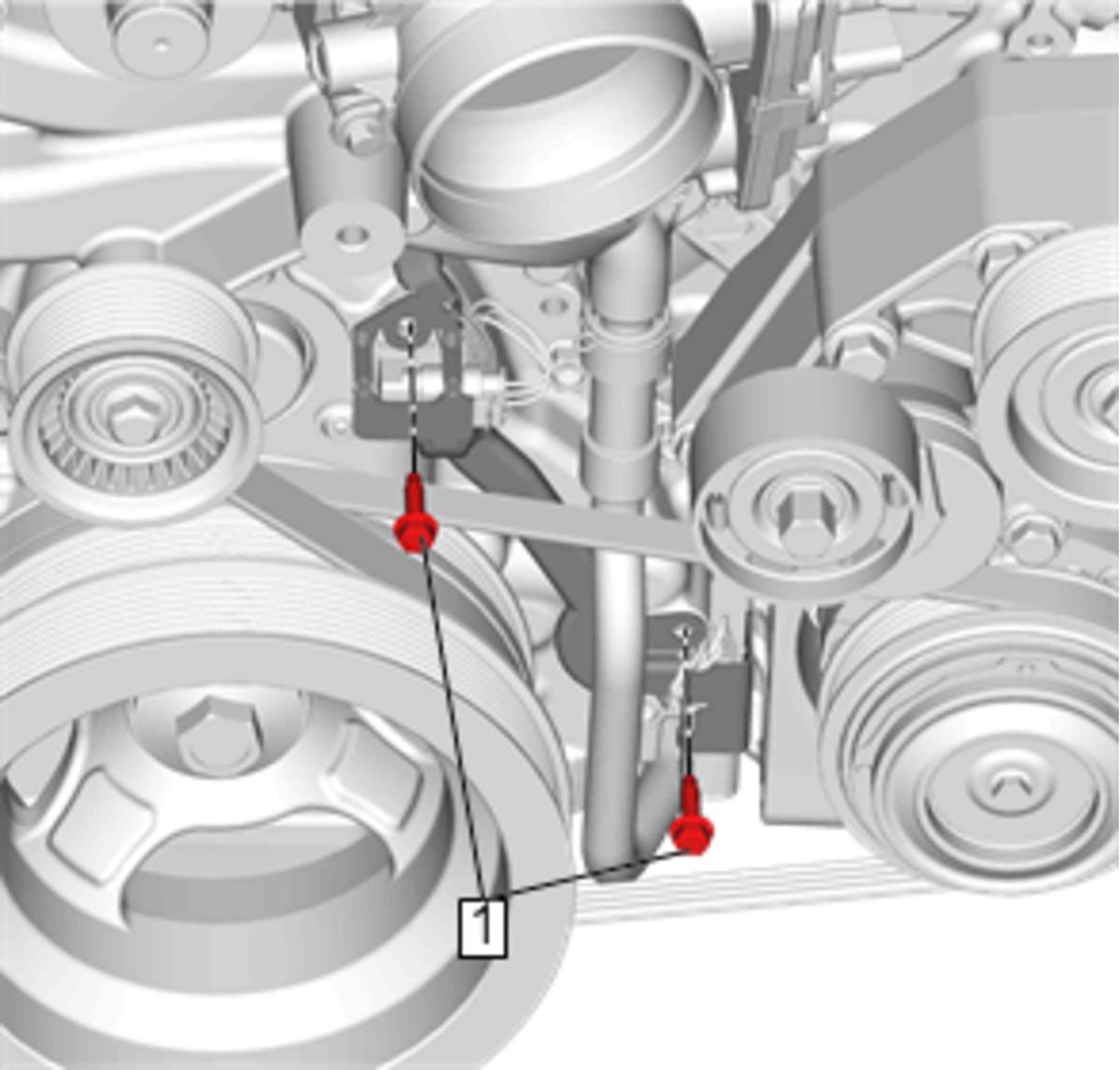

- Install the camshaft position sensor bracket fasteners (1) and tighten to 25 N.m (18 lb ft).
- Install Engine Oil Cooler Hose/Pipe Replacement (LT4)
- Install Supercharger Belt Idler Pulley Replacement (Supercharger Belt Tensioner Bracket)Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Upper)Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Lower)
- Install Air Cleaner Outlet Duct Replacement
- Install Intake Manifold Cover Replacement - Front
Fig 3: Oil Pump Flow Control Valve Connector, Camshaft Position Actuator Solenoid Connector, Camshaft Position Sensor Connector And Engine Wiring Harness Connector
CAUTION:
Refer to Fastener Caution .
