Installation Procedure

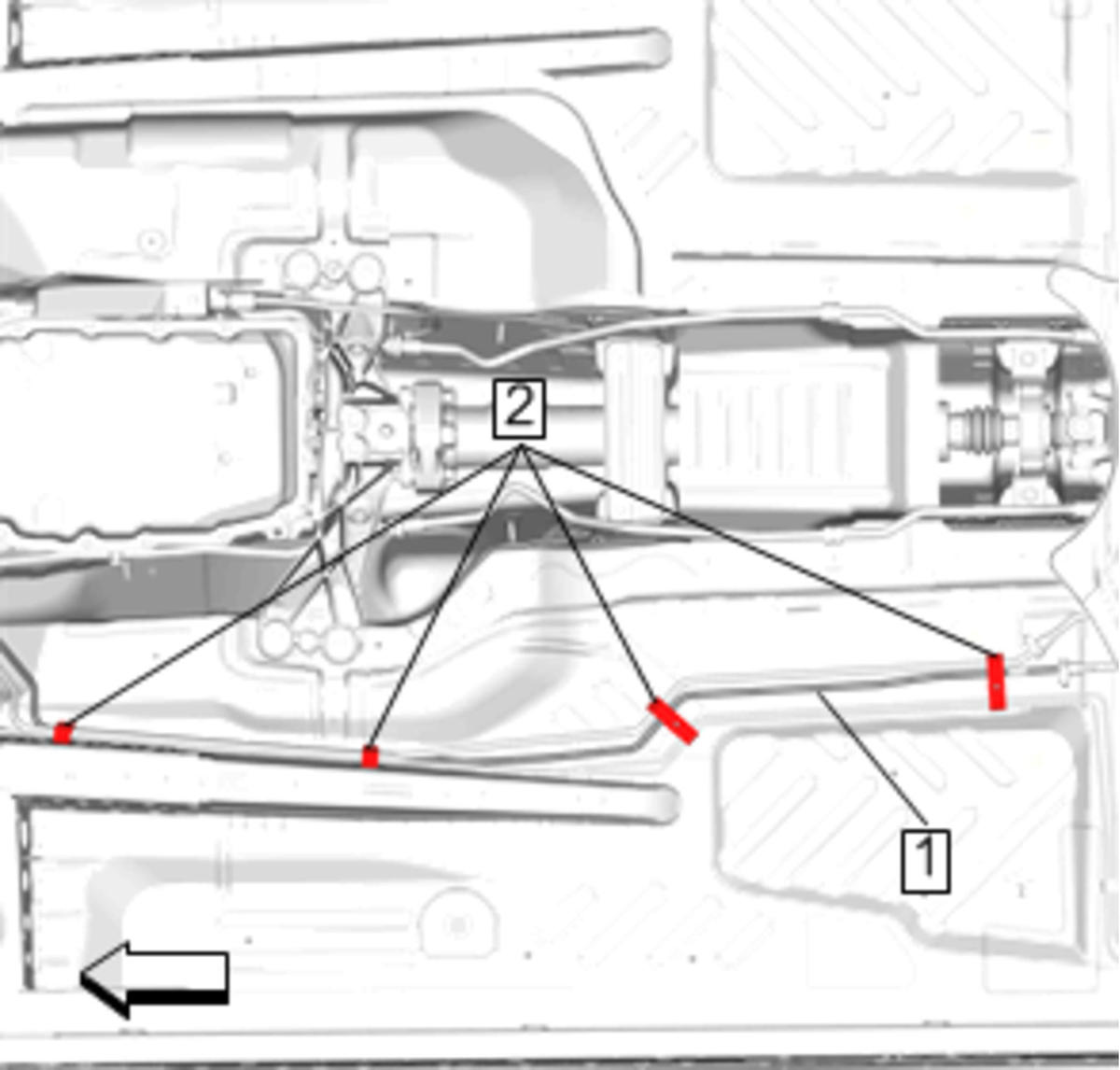

    Fig 1: Fuel Feed Pipe
    GM4084976Courtesy of GENERAL MOTORS COMPANY
  1. Install the fuel feed pipe (1) to the vehicle.
  2. Connect the fuel feed pipe (1) and install to the retainers (2). Plastic Collar Quick Connect Fitting Service
  3. Install the right side catalytic converter and exhaust. Exhaust System Replacement (LF3, LGX)
  4. Install the front body exhaust heat shield right side. Front Body Exhaust Heat Shield Replacement (Right)Front Body Exhaust Heat Shield Replacement (Left)
  5. Install the underbody front air deflector right side. Underbody Front Air Deflector Replacement - Right Side
  6. Lower the vehicle.

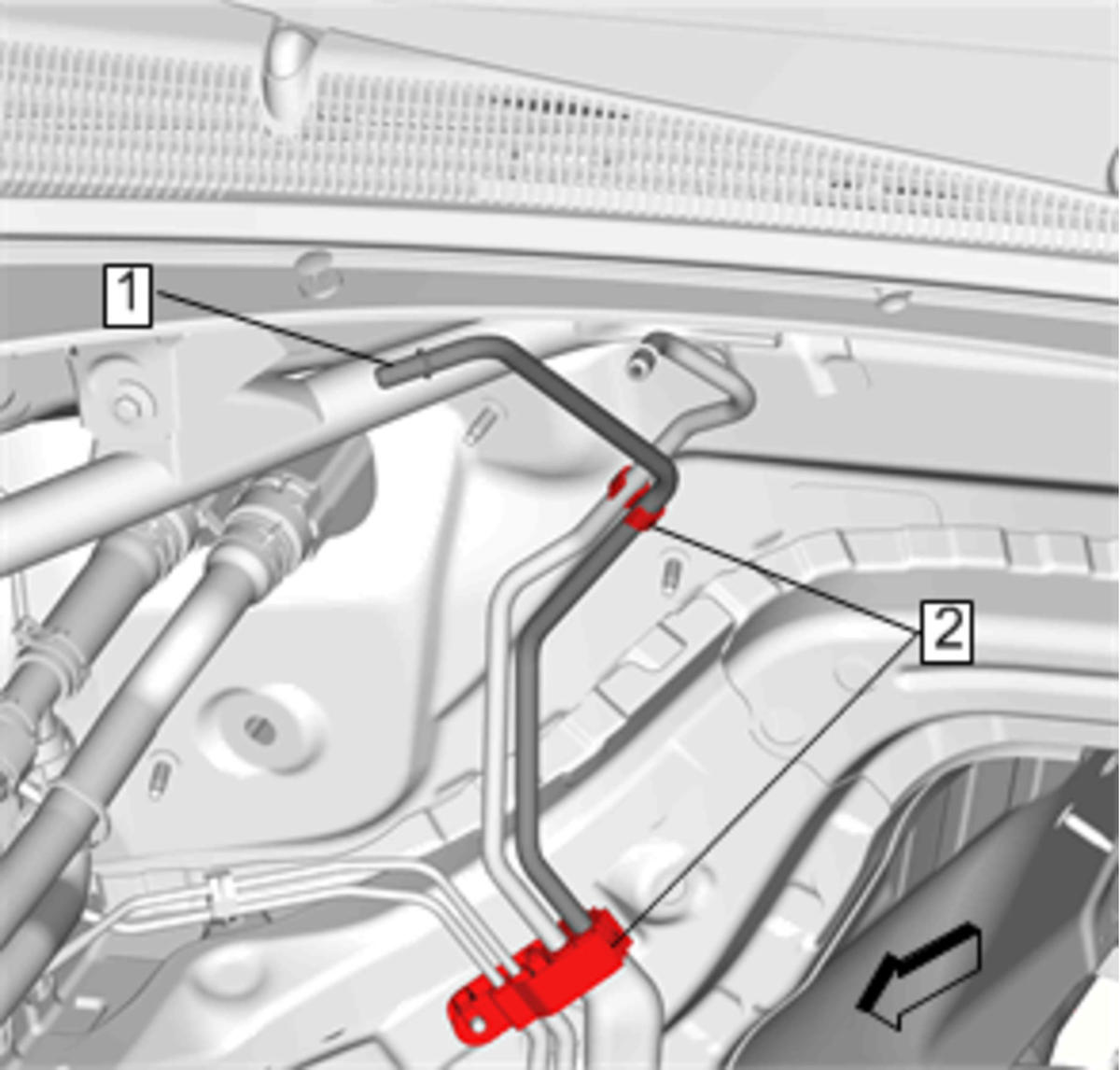

    7. Fig 2: Retainers
    GM4084972Courtesy of GENERAL MOTORS COMPANY
  7. Install the fuel feed pipe (1) to the retainers (2).
  8. Install the fuel feed front hose. Fuel Feed Front Hose Replacement
