Installation Procedure

    Fig 1: Fuel Tank Module
    GM2811786Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW seal (2) and the fuel tank module (1).

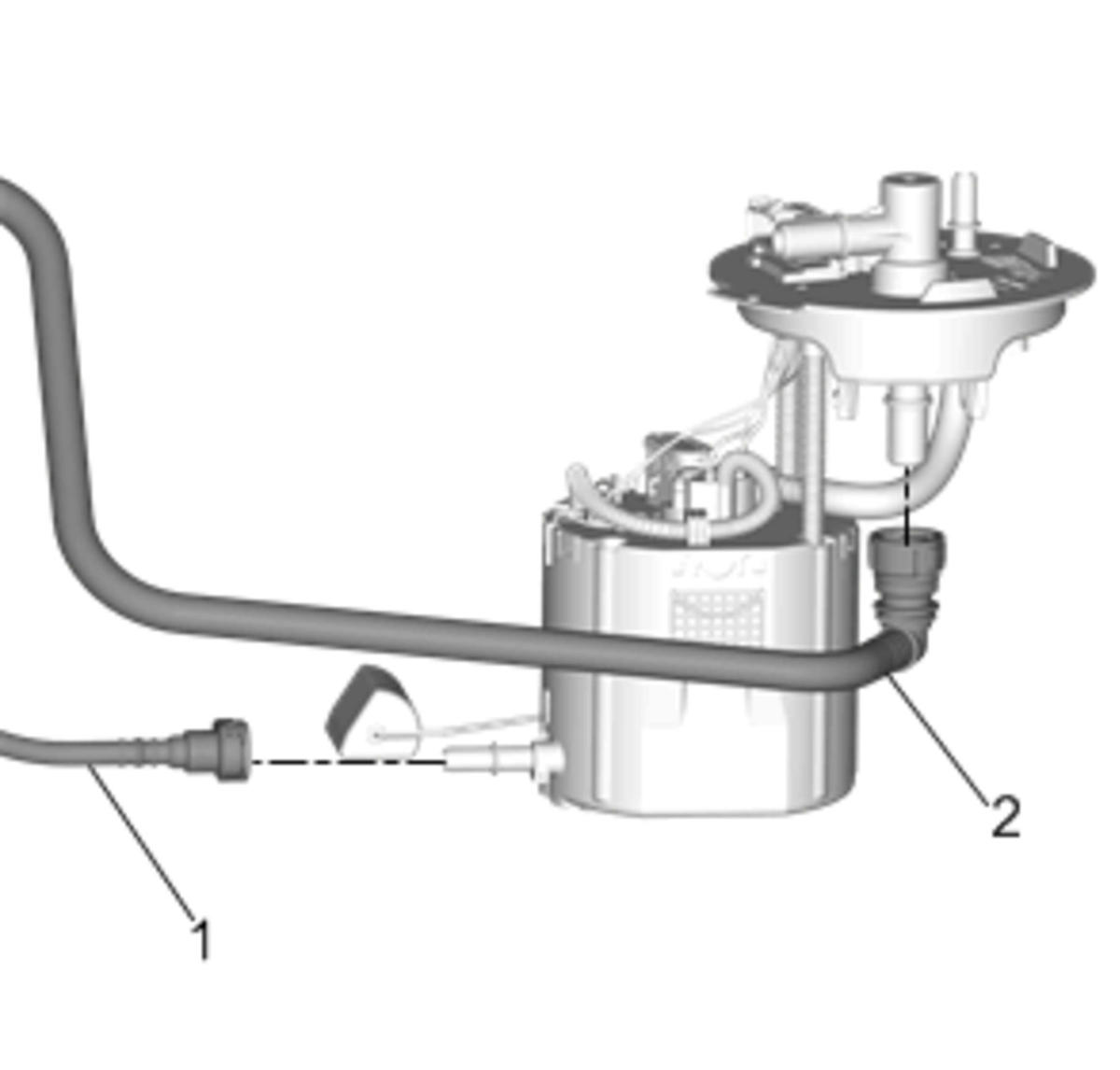

    2. Fig 2: Fuel Pump Vent Hose And Transfer Hose
    GM4215429Courtesy of GENERAL MOTORS COMPANY
  2. Connect the fuel pump vent hose (2) and transfer hose (1). Plastic Collar Quick Connect Fitting Service
    3. Fig 3: Fuel Tank Fuel Pump Module Lock Ring
    GM2811801Courtesy of GENERAL MOTORS COMPANY
  3. Use the CH 45722  wrench by turning clockwise and install the lock ring (1).
  4. Connect the fuel pump electrical connector and the quick connects. Plastic Collar Quick Connect Fitting Service
  5. Install the fuel tank. Refer to Fuel Tank Replacement .
