Throttle Body Assembly Replacement

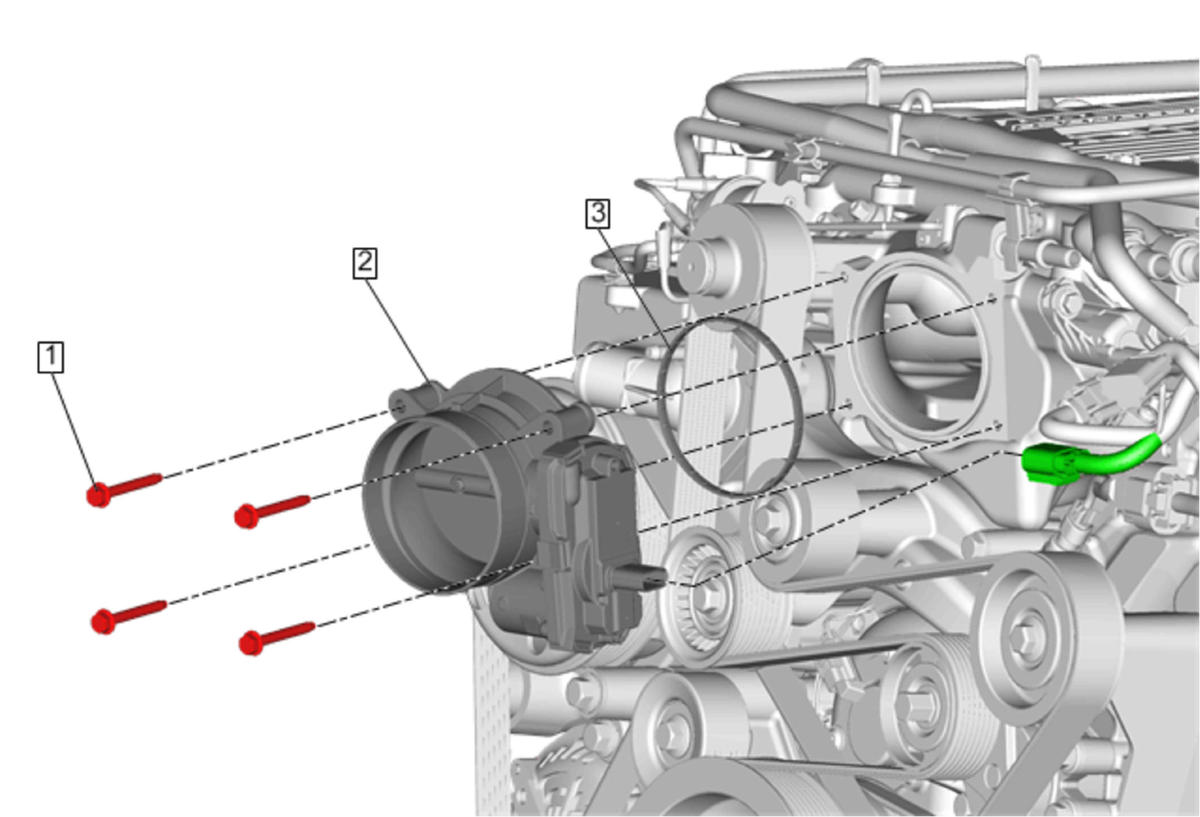

Fig 1: Throttle Body Assembly
GM4086194Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. An 8-digit part identification number is stamped on the throttle body casting. Refer to this number if servicing, or if a part replacement is required.
1 Throttle Body Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Throttle Body
CAUTION:

Handle the electronic throttle control components carefully. Use cleanliness in order to prevent damage. Do not drop the electronic throttle control components. Do not roughly handle the electronic throttle control components. Do not immerse the electronic throttle control components in cleaning solvents of any type.

Procedure

  1. Disconnect the throttle body harness connector.
  2. Perform the throttle learn procedure. Refer to Throttle or Idle Learn .
NOTE:

In order to prevent possible contamination, cover or plug any opening when servicing the throttle body.

NOTE:

If re-installing the throttle body and cleaning is required, refer to Throttle Body Cleaning .
3 Throttle Body Seal
Procedure
Install a NEW throttle body seal.
