Forward Collision Alert Display Replacement

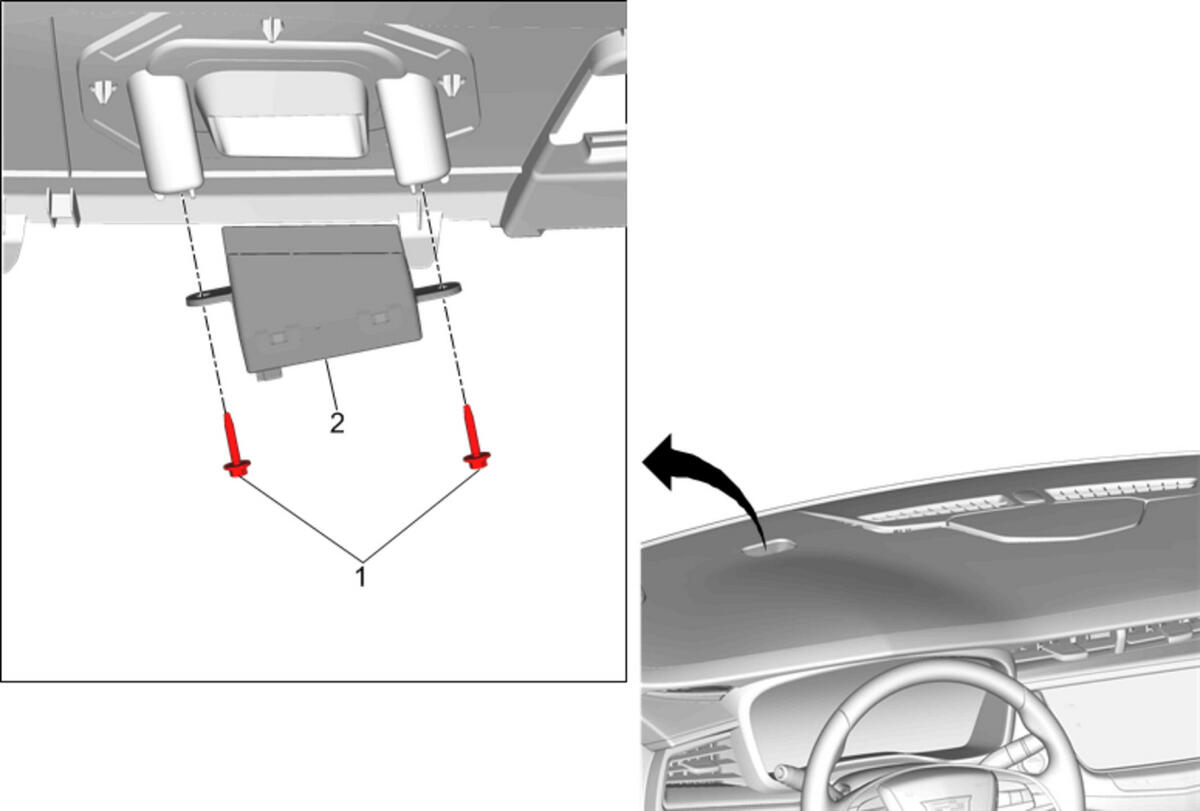

Fig 1: Forward Collision Alert Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Instrument Panel Instrument Cluster Hood. Refer to Instrument Panel Instrument Cluster Hood Replacement
1	Forward Collision Alert Display Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Forward Collision Alert Display
