Front View Driver Information Camera Replacement

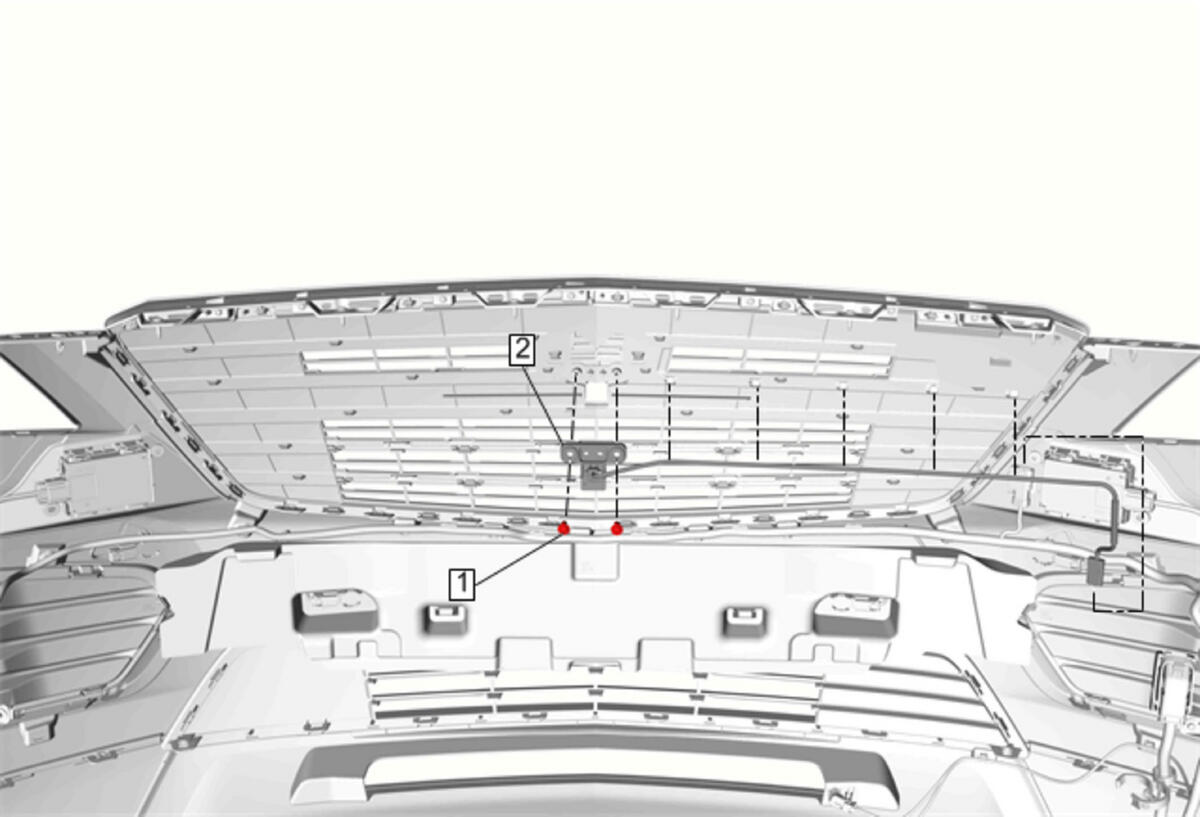

Fig 1: Front View Driver Information Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Front View Driver Information Camera Retainer (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  2 N.m (18 lb in)
2	Front View Driver Information Camera Procedure  Disconnect the electrical connector.
