Parking Assist Alarm Disable Switch Replacement

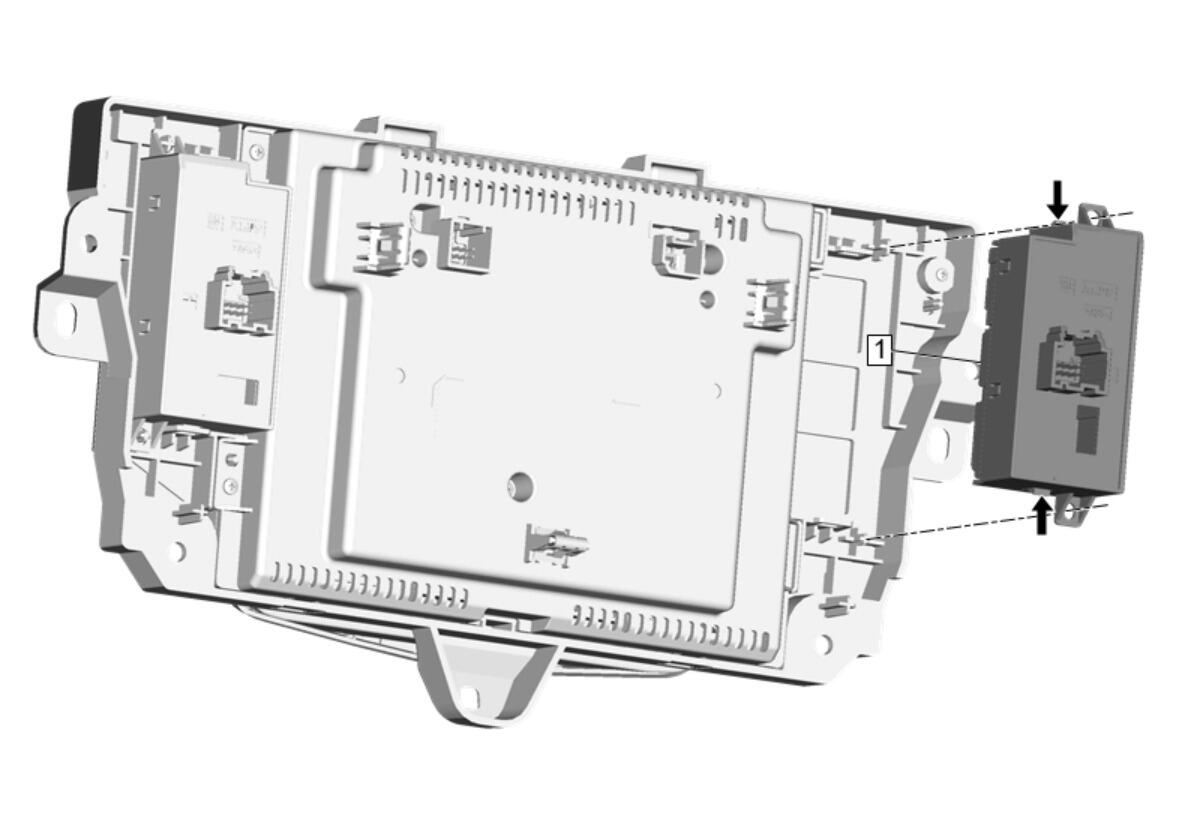

Fig 1: Parking Assist Alarm Disable Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Radio Control Assembly. Refer to Radio Control Assembly Replacement
1	Parking Assist Alarm Disable Switch Procedure  Release the retaining tabs.
