Short Range Radar Sensor Replacement (Front)

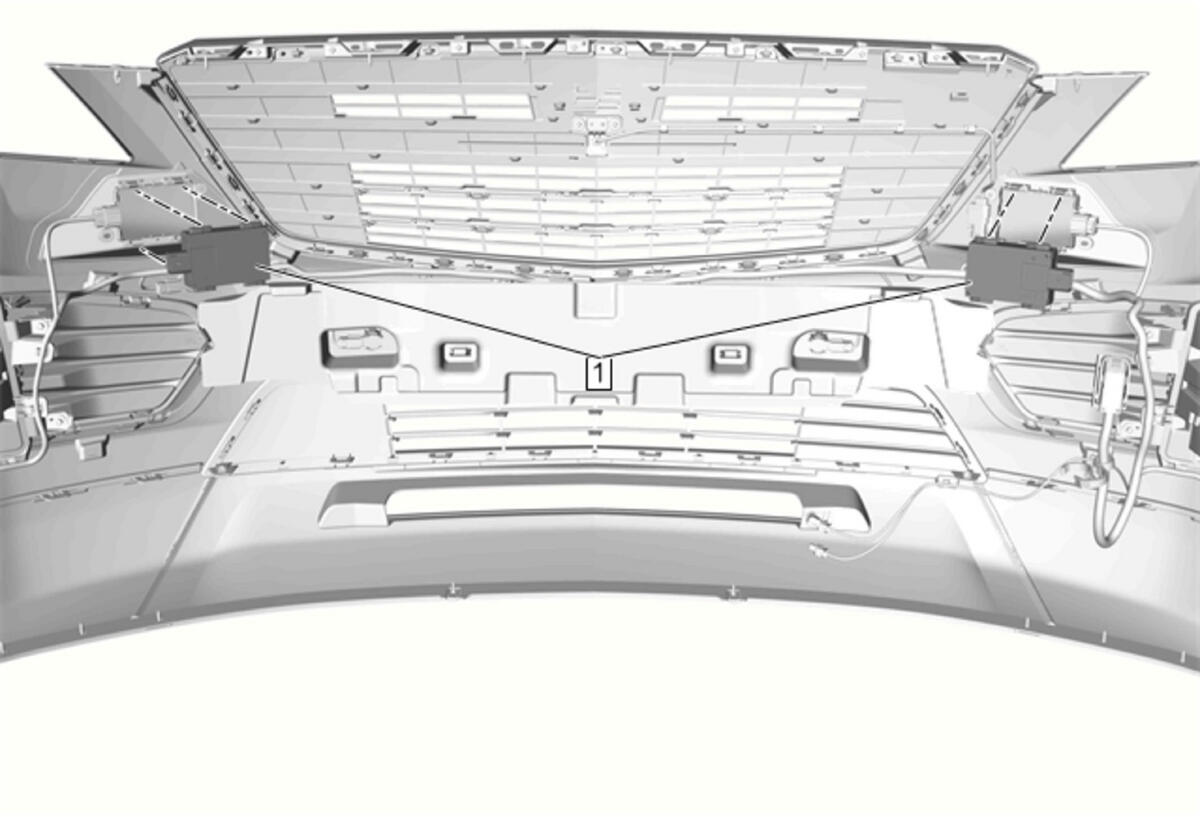

Fig 1: Short Range Radar Sensor (Front)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Short Range Radar Sensor (Qty: 2) Procedure Disconnect the electrical connector. Release the tab retainer tabs and remove. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement

Short Range Radar Sensor (Qty: 2)

Procedure
