Collision Avoidance - Module Power, Ground, and Serial Data (UGN)

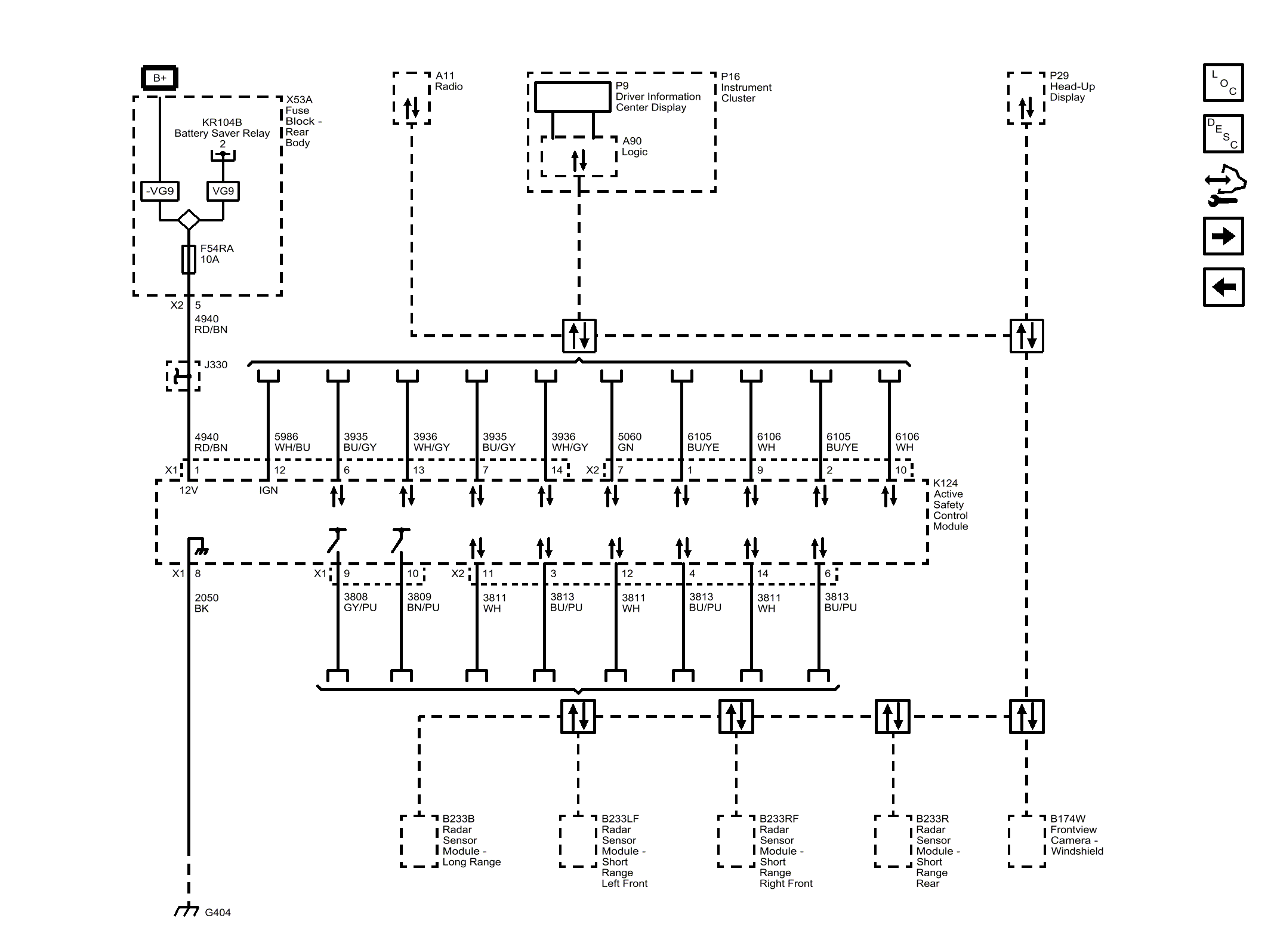

Fig 1: Collision Avoidance - Module Power, Ground, and Serial Data (UGN)
GM4305324Courtesy of GENERAL MOTORS COMPANY
