Lane Keep Assist and Forward Collision - Controls (UEU)

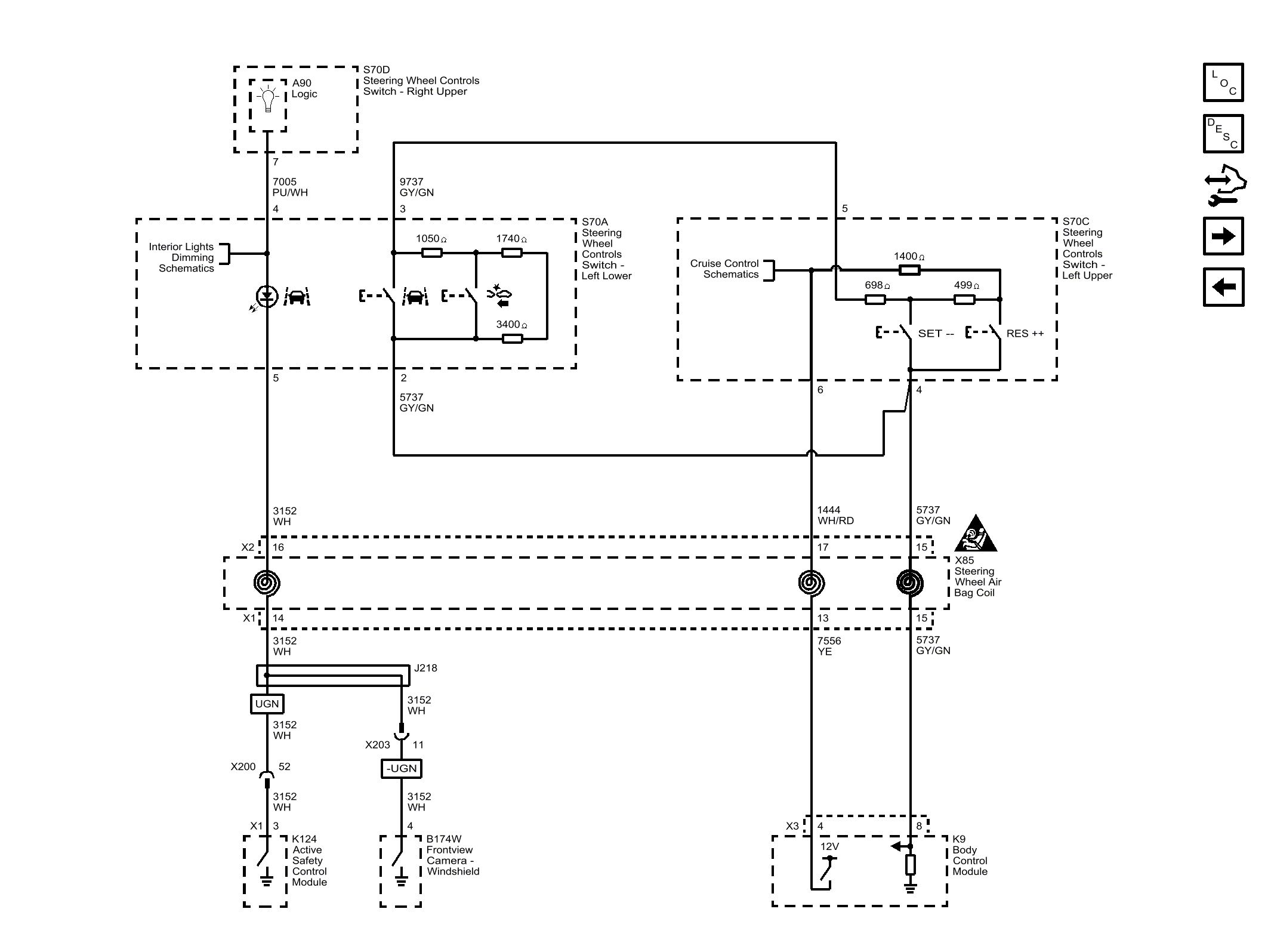

Fig 1: Lane Keep Assist and Forward Collision - Controls (UEU)
GM4304854Courtesy of GENERAL MOTORS COMPANY
