Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU)
Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU)

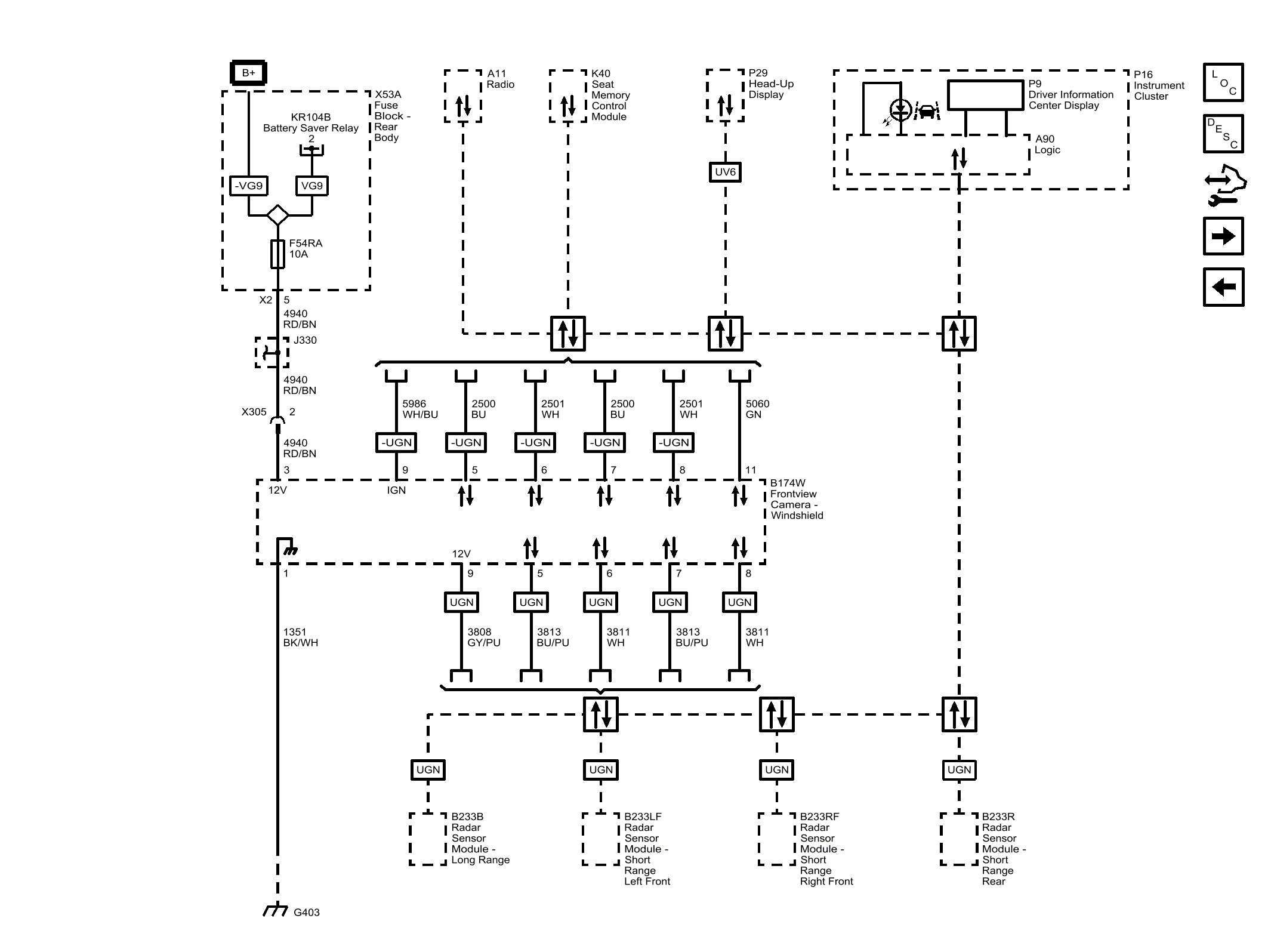

Fig 1: Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU)
Courtesy of GENERAL MOTORS COMPANY
