Park Assist - Indicator and Controls

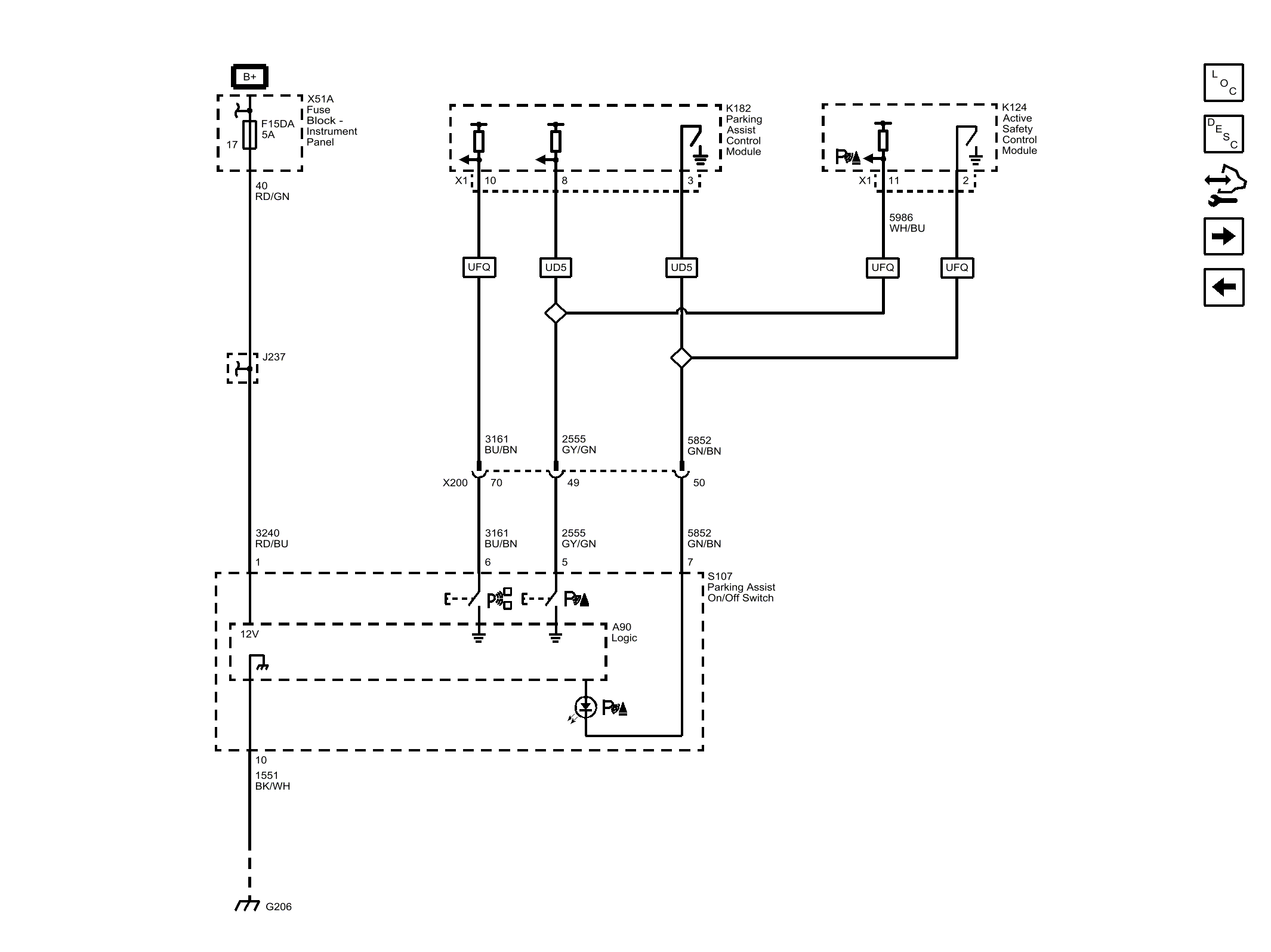

Fig 1: Park Assist - Indicator and Controls
GM4303440Courtesy of GENERAL MOTORS COMPANY
