Object Detection System And Pedestrian Protection System
›
Schematic Wiring Diagrams
›
Object Detection Wiring Schematics
›
Park Assist - Power, Ground, and Serial Data
Park Assist - Power, Ground, and Serial Data

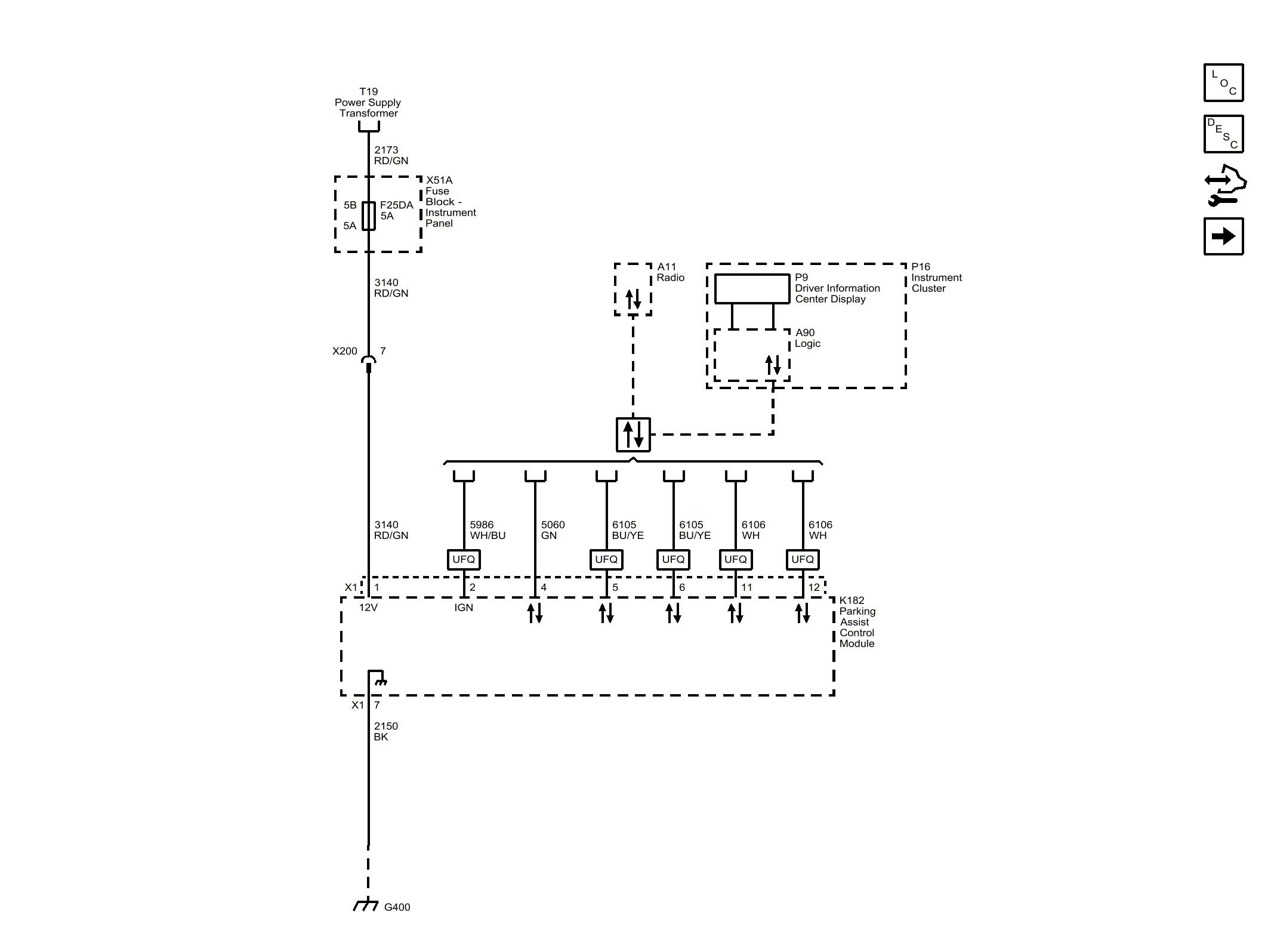

Fig 1: Park Assist - Power, Ground, and Serial Data
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
