Front Floor Speaker Replacement
Front Floor Speaker Replacement

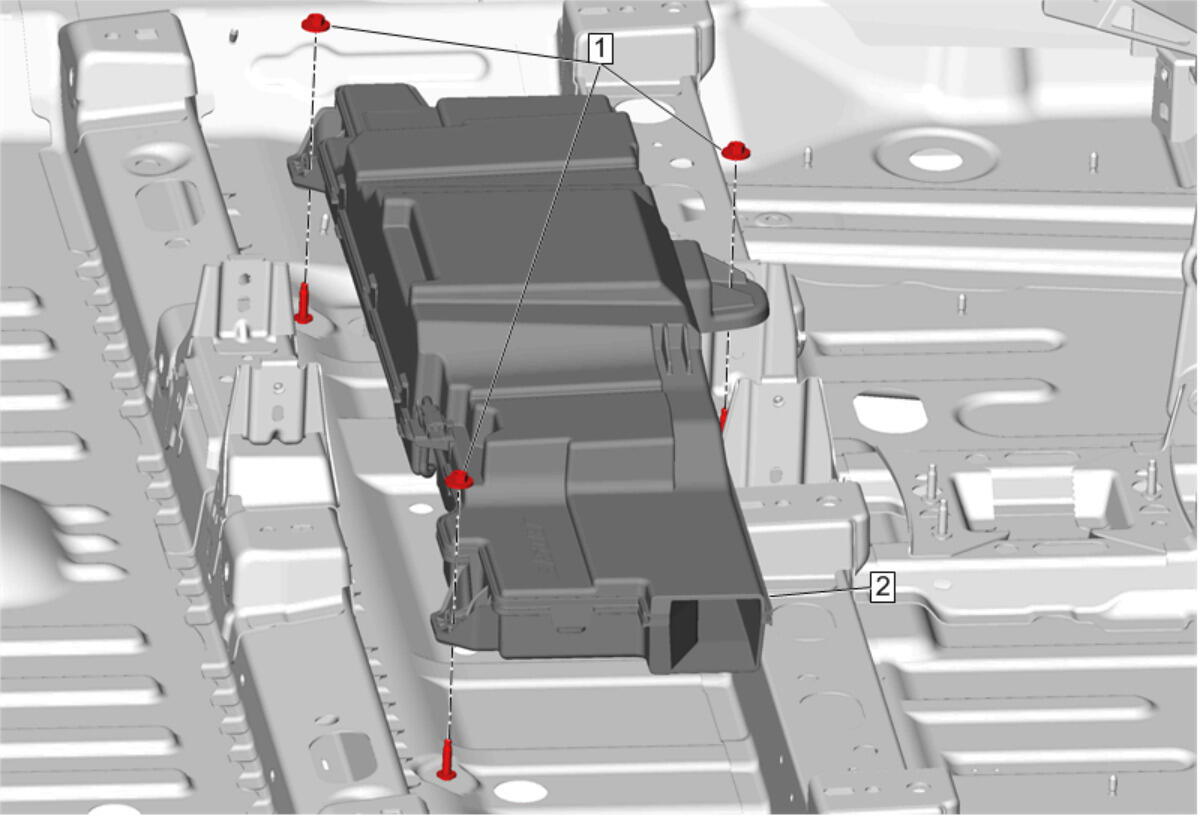

Fig 1: Front Floor Speaker
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Floor Rear Air Outlet Duct Replacement - Left Side
Floor Rear Air Outlet Duct Replacement - Right Side
Front Floor Console Rear Air Duct Replacement (Rearward of Auxiliary Blower)
Front Floor Console Rear Air Duct Replacement (Forward of Auxiliary Blower)
1
Front Floor Speaker Nut (Qty: 3)
CAUTION:
Fastener Caution
Tighten
6 N.m (53 lb in)
2
Front Floor Speaker
Procedure
Disconnect the electrical connector.
