Garage Door Opener Transmitter Replacement

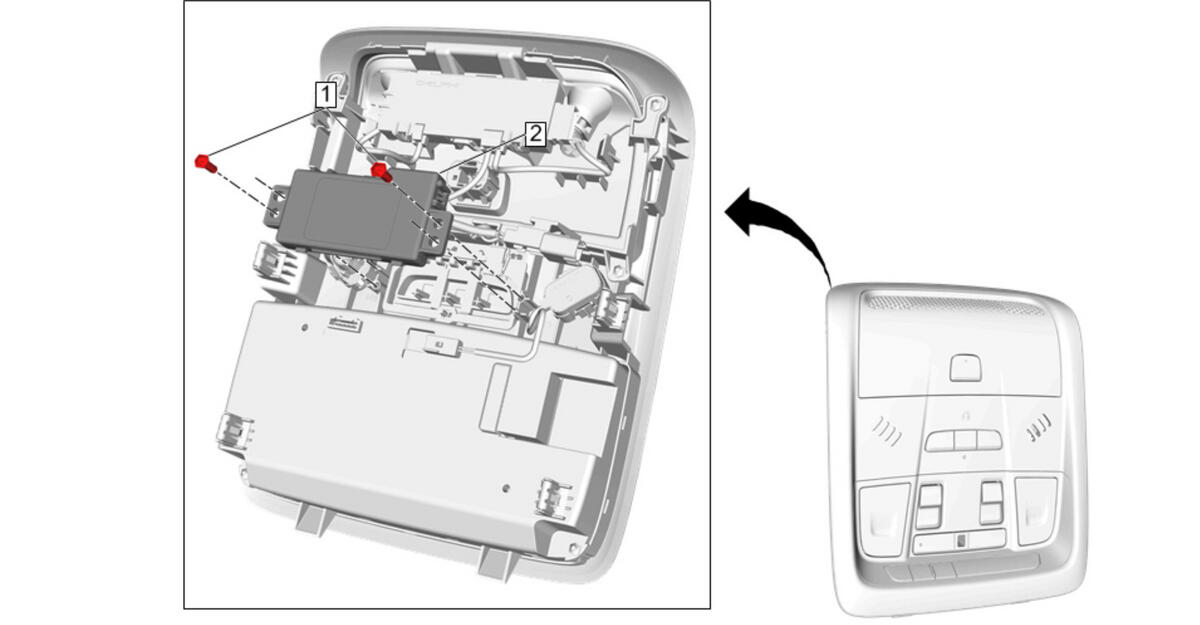

Fig 1: Garage Door Opener Transmitter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Roof Console. Refer to Roof Console Replacement
1	Roof Console Bolt (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  1.5 N.m (13 lb in)
2	Garage Door Opener Transmitter
