Low Frequency Rear Bumper Antenna Replacement

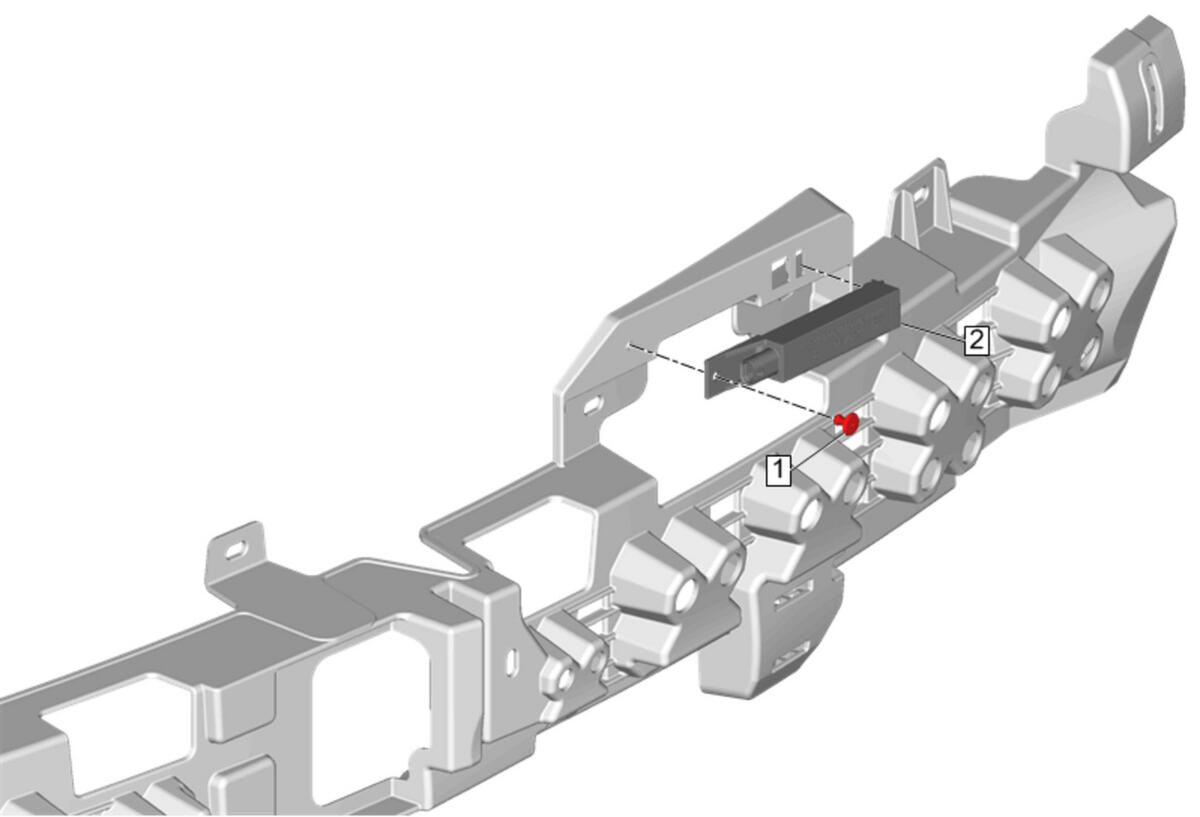

Fig 1: Low Frequency Rear Bumper Antenna

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Rear Bumper Fascia Energy Absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement
1	Rivet WARNING: Refer to Eye Protection Warning Procedure  Drill out the rivet.
2	Low Frequency Rear Bumper Antenna Procedure  Release the retaining tab.
