Liftgate Latch Replacement

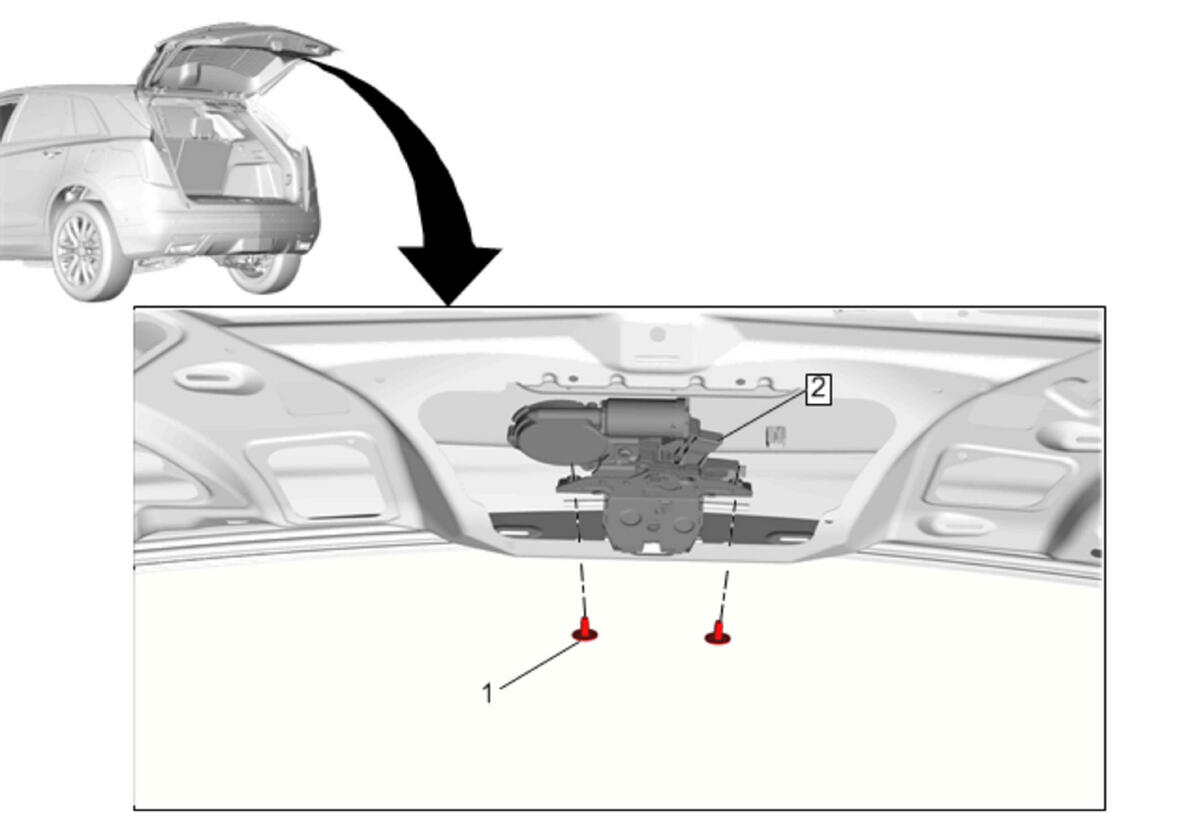

Fig 1: Liftgate Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Liftgate Lower Trim Finish Panel. Refer to Liftgate Lower Trim Finish Panel Replacement
1	Liftgate Latch Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Liftgate Latch Procedure Disconnect the electrical connector.
