Front Seat Adjuster Memory Switch Replacement

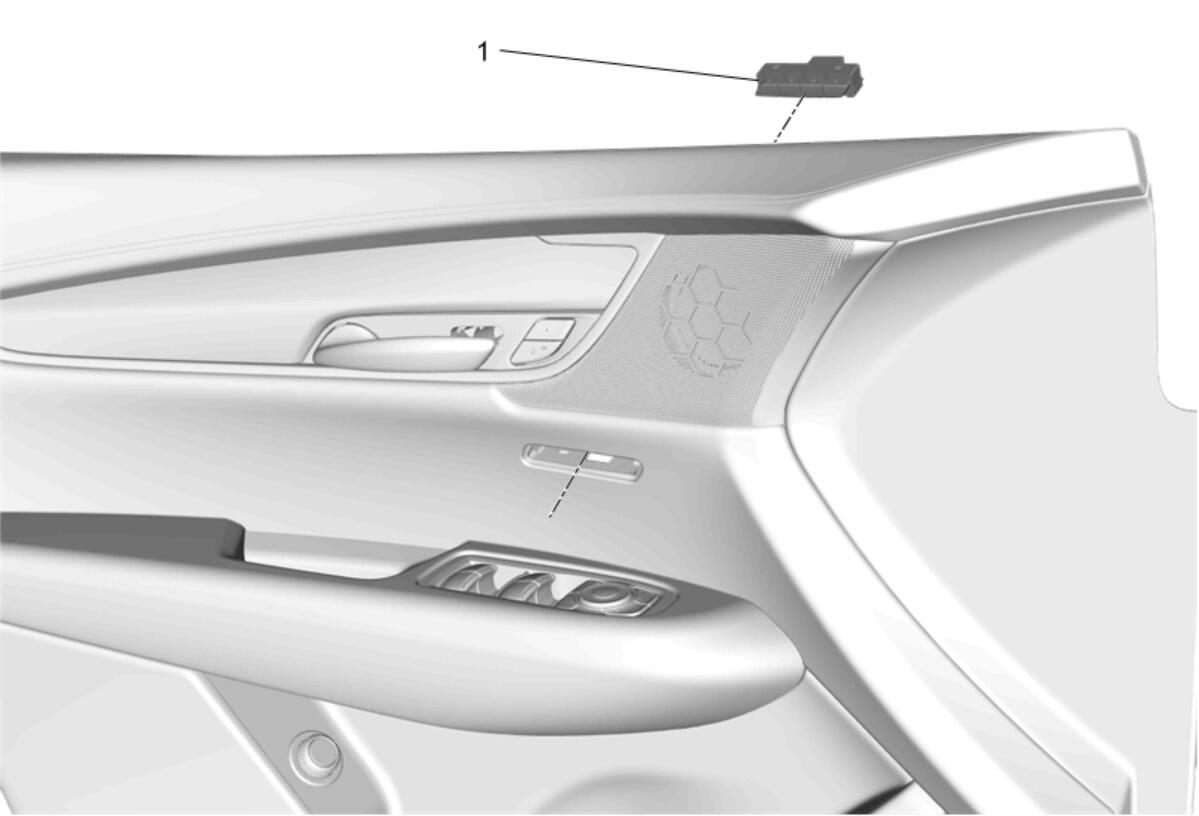

Fig 1: Front Seat Adjuster Memory Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Side Door Trim. Refer to Front Side Door Trim Replacement
1	Front Seat Adjuster Memory Switch Procedure Use a plastic trim tool to release the switch from the door trim. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove Front Side Door Trim. Refer to Front Side Door Trim Replacement

Front Seat Adjuster Memory Switch

Procedure
