Front Side Door Window Weatherstrip Replacement

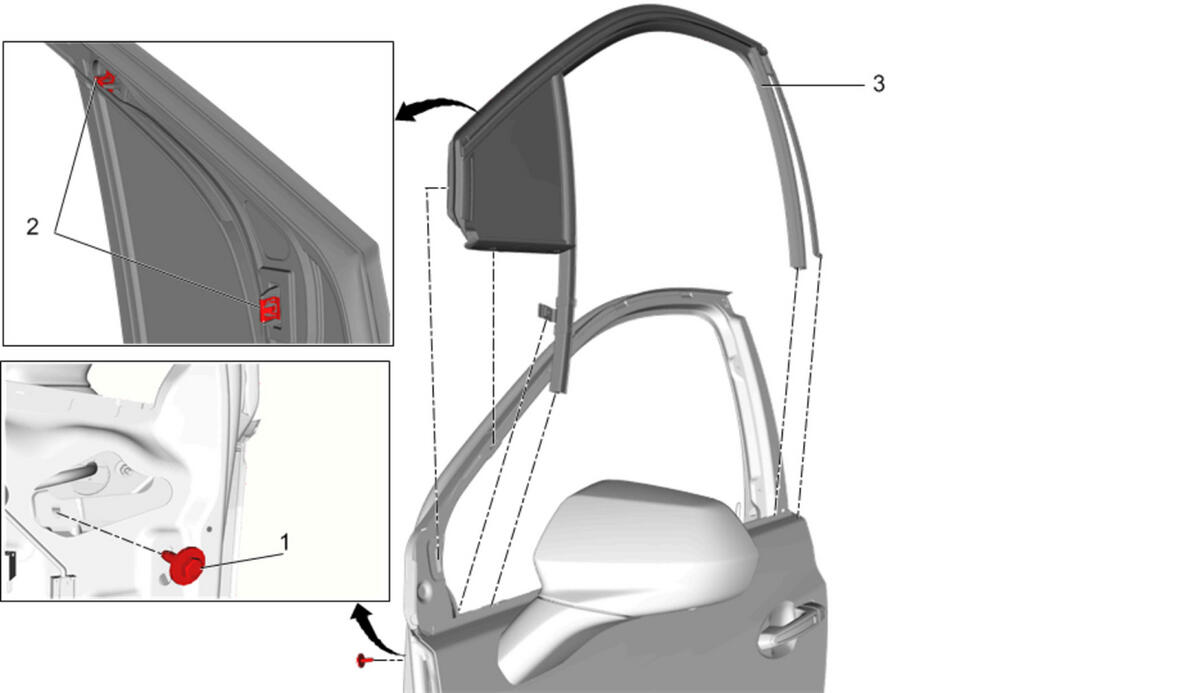

Fig 1: Front Side Door Window Weatherstrip
GM4284451Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Side Door Window Replacement
  2. Radio Front Side Door Speaker Replacement
  3. Front Side Door Window Frame Rear Applique Replacement
1 Front Side Door Window Weatherstrip Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
11 N.m (97 lb in)
2 Front Side Door Window Weatherstrip fastener (Qty: 2)
3 Front Side Door Window Weatherstrip
