Rear Side Door Window Frame Rear Applique Replacement

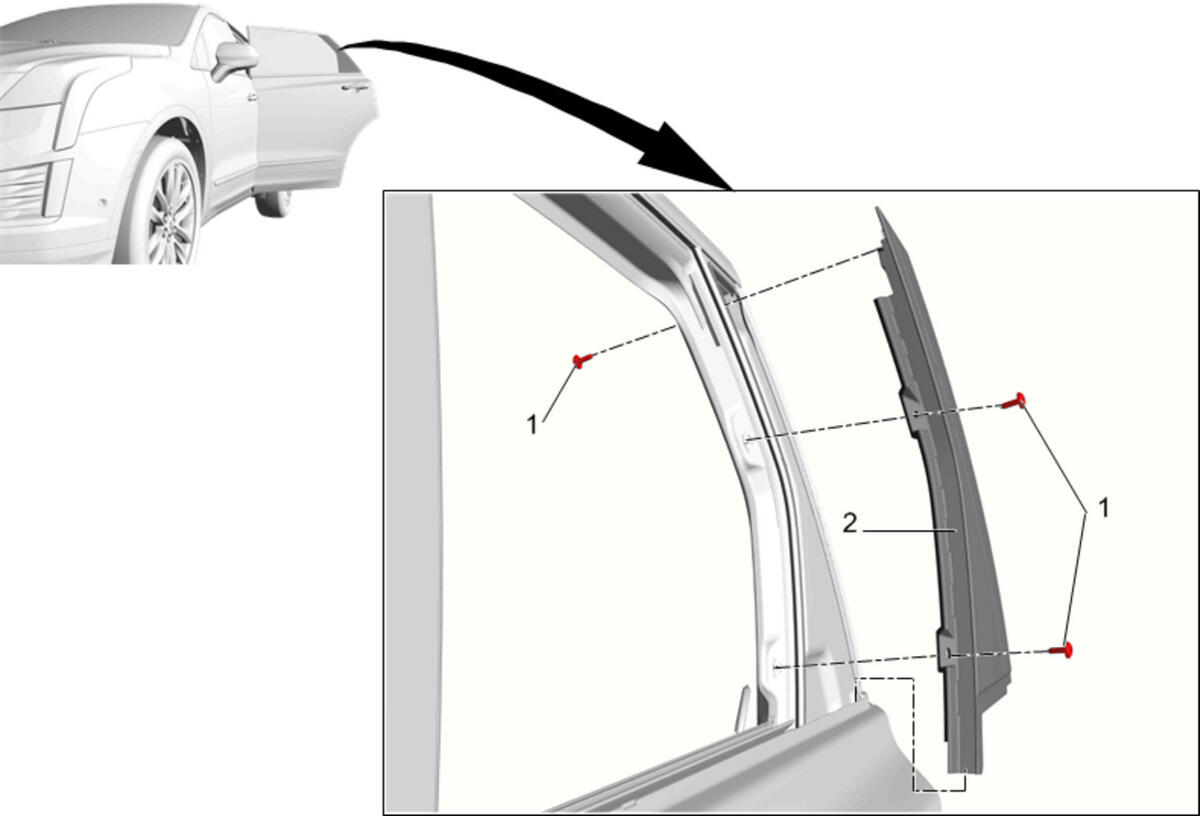

Fig 1: Rear Side Door Window Frame Rear Applique

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Procedure Rear Side Door Window Garnish Molding Replacement Rear Side Door Window Belt Reveal Molding Replacement
1	Rear Side Door Window Frame Rear Applique Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Pull weatherstrip away from the applique to access the screws. Tighten 1.5 N.m (13 lb in)
2	Rear Side Door Window Frame Rear Applique

Callout

Component Name

Procedure

Rear Side Door Window Frame Rear Applique Screw (Qty: 3)

CAUTION:

Procedure
Pull weatherstrip away from the applique to access the screws.
Tighten
1.5 N.m (13 lb in)

Rear Side Door Window Frame Rear Applique
