Battery Tray Replacement

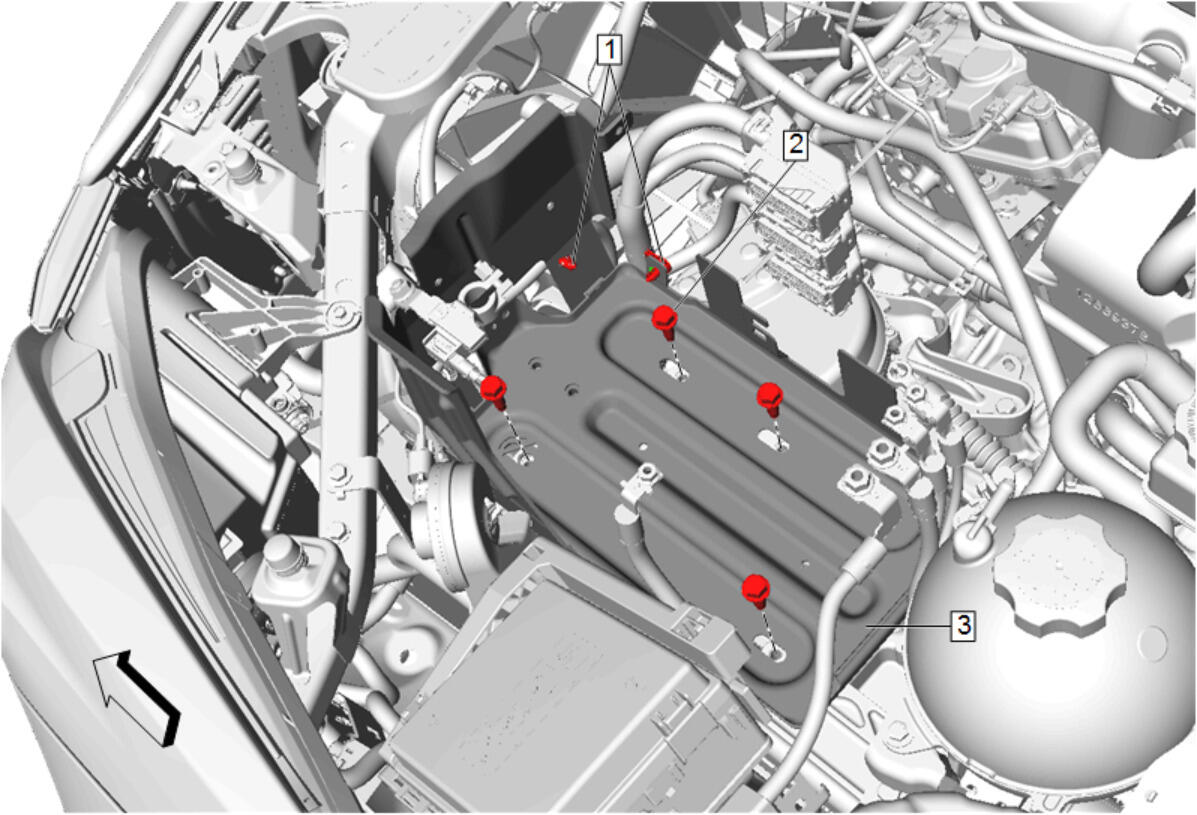

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Battery Replacement Engine Control Module Bracket Replacement Disengage any retainers attached to the battery tray.
1	Battery Tray Mounting Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 22 N.m (16 lb ft)
2	Battery Tray

Callout

Component Name

Preliminary Procedures

Battery Tray Mounting Bolt (Qty: 4)

CAUTION:

Tighten
22 N.m (16 lb ft)

Battery Tray
