Head-Up Display Replacement

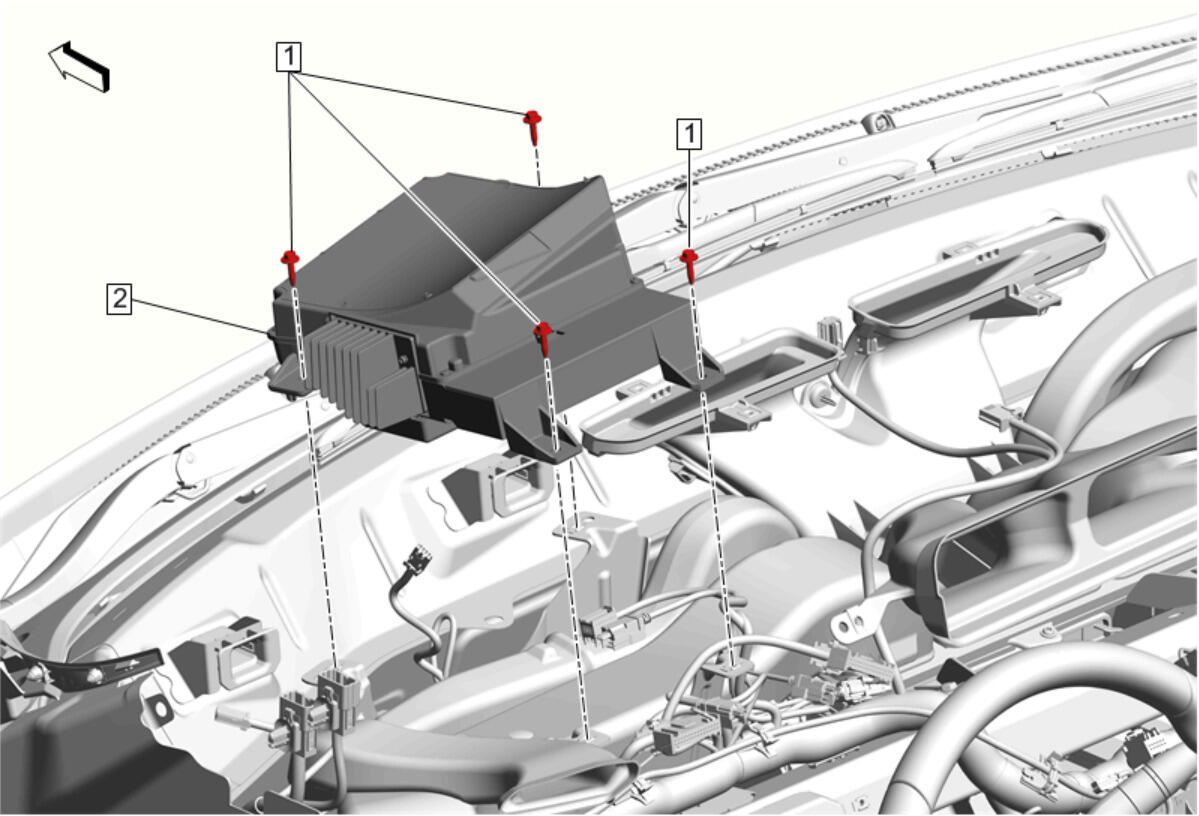

Fig 1: Head-Up Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Carrier. Refer to Instrument Panel Carrier Replacement
1	Head-Up Display Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Head-Up Display Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Carrier. Refer to Instrument Panel Carrier Replacement

Head-Up Display Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Head-Up Display

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
