Instrument Cluster Replacement

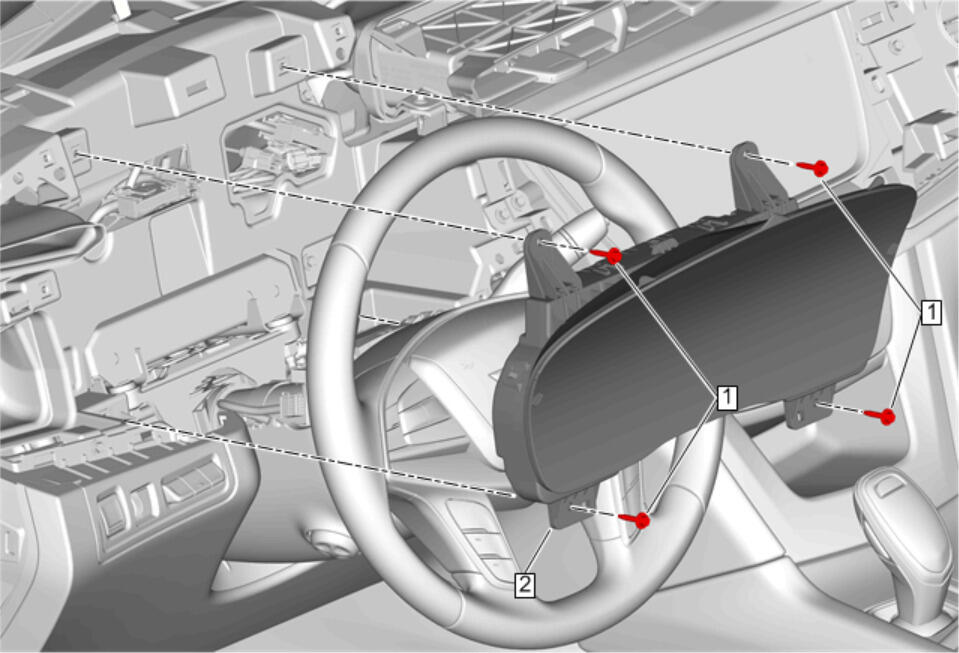

Fig 1: Instrument Cluster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Instrument Panel Trim Plate Applique - Left Side. Refer to Instrument Panel Trim Plate Applique Replacement - Left Side
1	Instrument Cluster Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up information, if required.

Callout

Component Name

Preliminary Procedure
Remove Instrument Panel Trim Plate Applique - Left Side. Refer to Instrument Panel Trim Plate Applique Replacement - Left Side

Instrument Cluster Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Cluster

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and set up information, if required.
