Exhaust Muffler Heat Shield Replacement

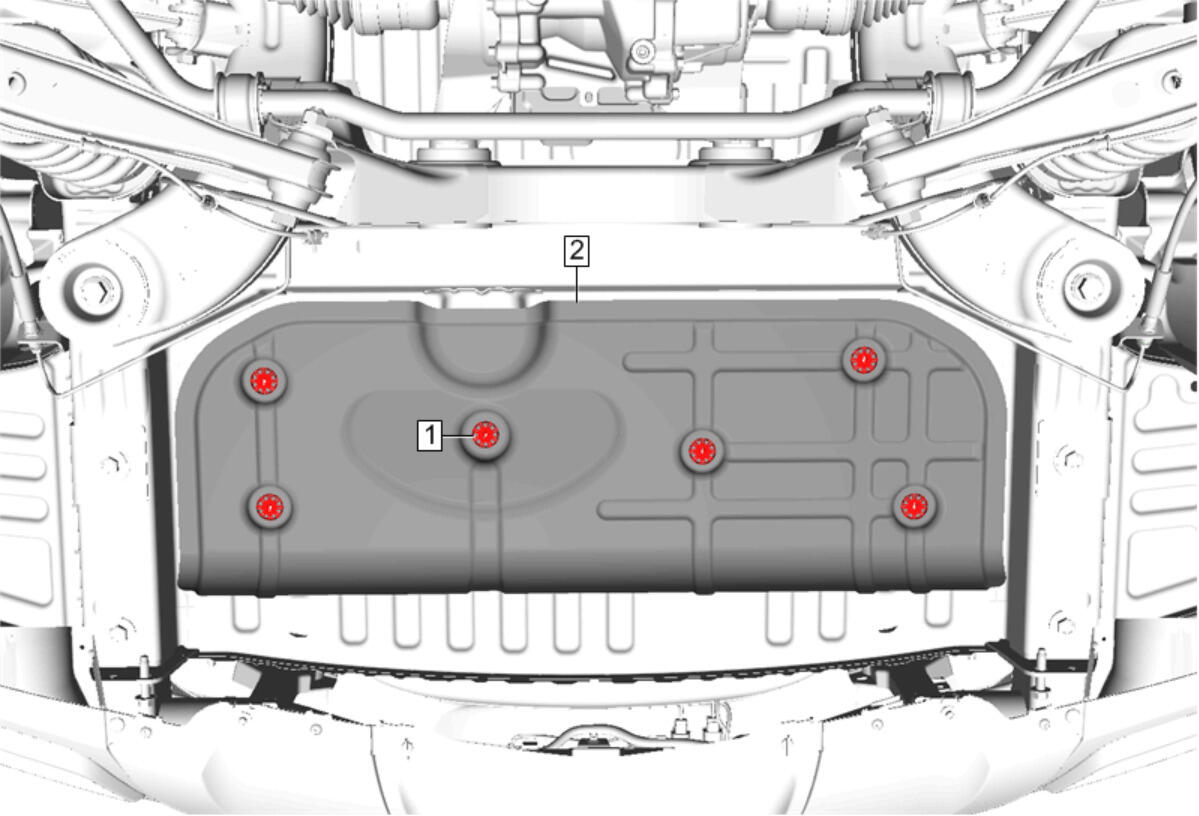

Fig 1: Exhaust Muffler Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedure Exhaust Muffler Replacement (LGX)
1	Exhaust Rear Muffler Heat Shield Retainer (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Exhaust Rear Muffler Heat Shield
