Removal Procedure

    Fig 1: Fuel Feed Pipe
    GM4316685Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect Fuel Feed Pipe (1). Refer to Fuel Feed Pipe Replacement (At Engine)
  2. Remove Engine Rear Noise Shield. Refer to Engine Rear Noise Shield Replacement

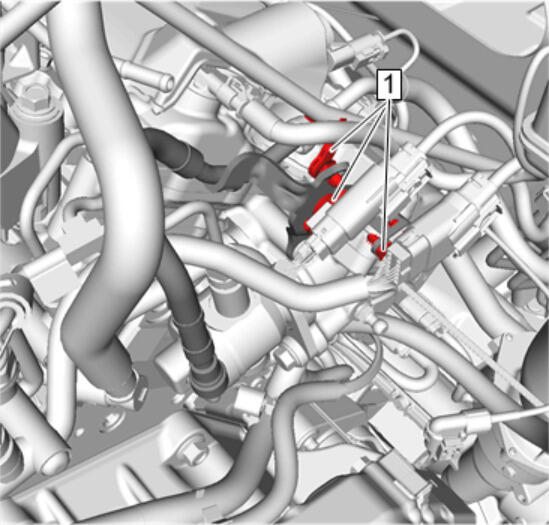

    3. Fig 2: Wiring Harness Retainers
    GM4320175Courtesy of GENERAL MOTORS COMPANY
  3. Unclip Wiring Harness Retainers (1) (Qty: 3)

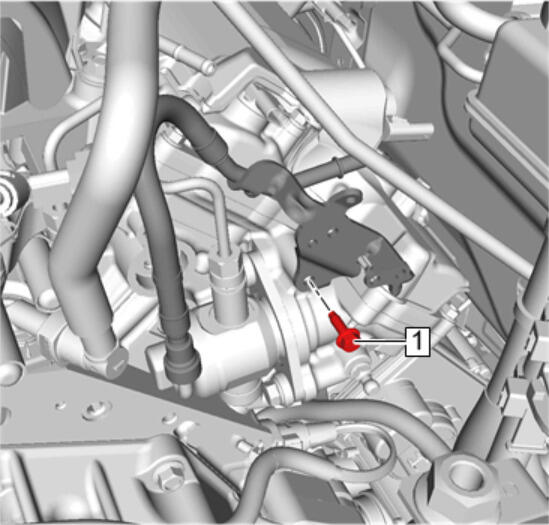

    4. Fig 3: Fuel Feed Front Pipe Bracket Bolt
    GM4320343Courtesy of GENERAL MOTORS COMPANY
  4. Remove Fuel Feed Front Pipe Bracket Bolt (1)

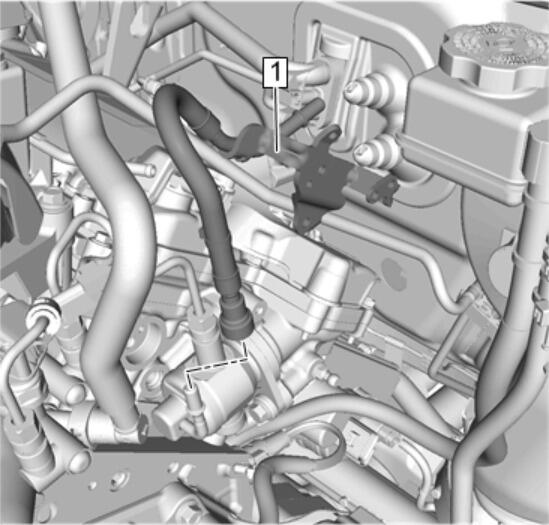

    5. Fig 4: Fuel Feed Pipe
    GM4320359Courtesy of GENERAL MOTORS COMPANY
  5. Remove Fuel Feed Pipe (1). Refer to Metal Collar Quick Connect Fitting Service
