Installation Procedure

    Fig 1: Fuel Feed Pipe And Retainers
    GM4316440Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Feed Pipe (1) @ Retainers (2) (Qty: 5)
  2. Connect Fuel Feed Pipe (1). Refer to Plastic Collar Quick Connect Fitting Service
  3. Lower the vehicle.

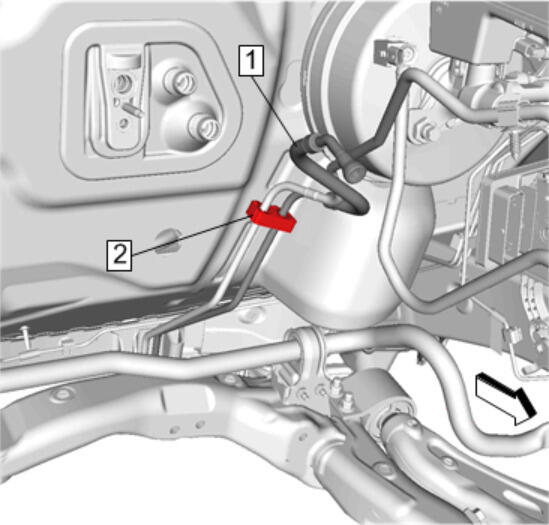

    4. Fig 2: Fuel Feed Pipe And Retainer
    GM4316680Courtesy of GENERAL MOTORS COMPANY
  4. Install Fuel Feed Pipe (1) @ Retainer (2)

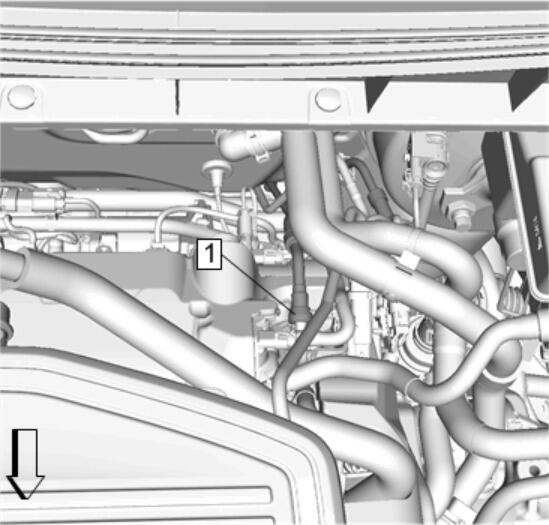

    5. Fig 3: Fuel Feed Pipe
    GM4316685Courtesy of GENERAL MOTORS COMPANY
  5. Connect Fuel Feed Pipe (1). Refer to Metal Collar Quick Connect Fitting Service
