Fuel Injection Fuel Rail Noise Shield Replacement

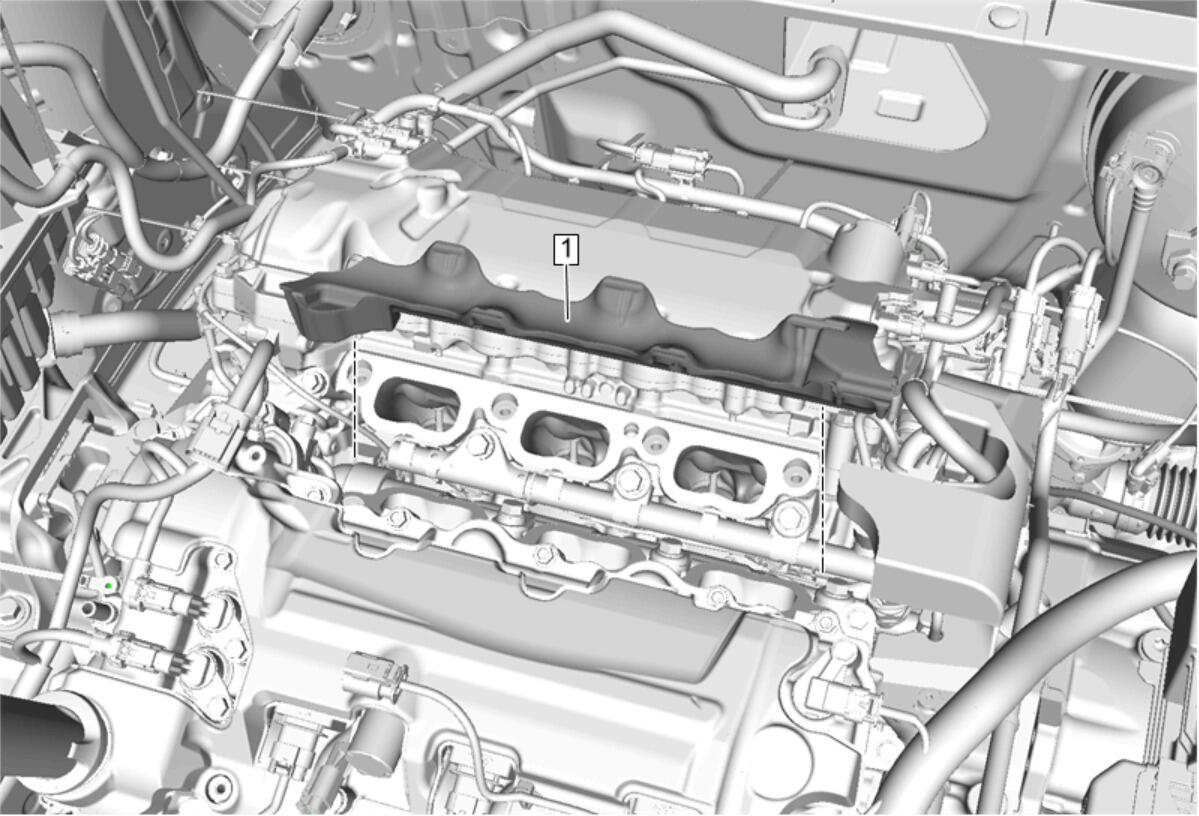

Fig 1: Fuel Injection Fuel Rail Noise Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Intake Manifold. Refer to Intake Manifold Replacement
1	Fuel Injection Fuel Rail Noise Shield WARNING: The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death. NOTE: The fuel injection fuel rail noise shield snaps into place.

Callout

Component Name

Preliminary Procedure
Remove Intake Manifold. Refer to Intake Manifold Replacement

Fuel Injection Fuel Rail Noise Shield

WARNING:

The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

NOTE:

The fuel injection fuel rail noise shield snaps into place.
