Ignition Coil Replacement - Bank 1

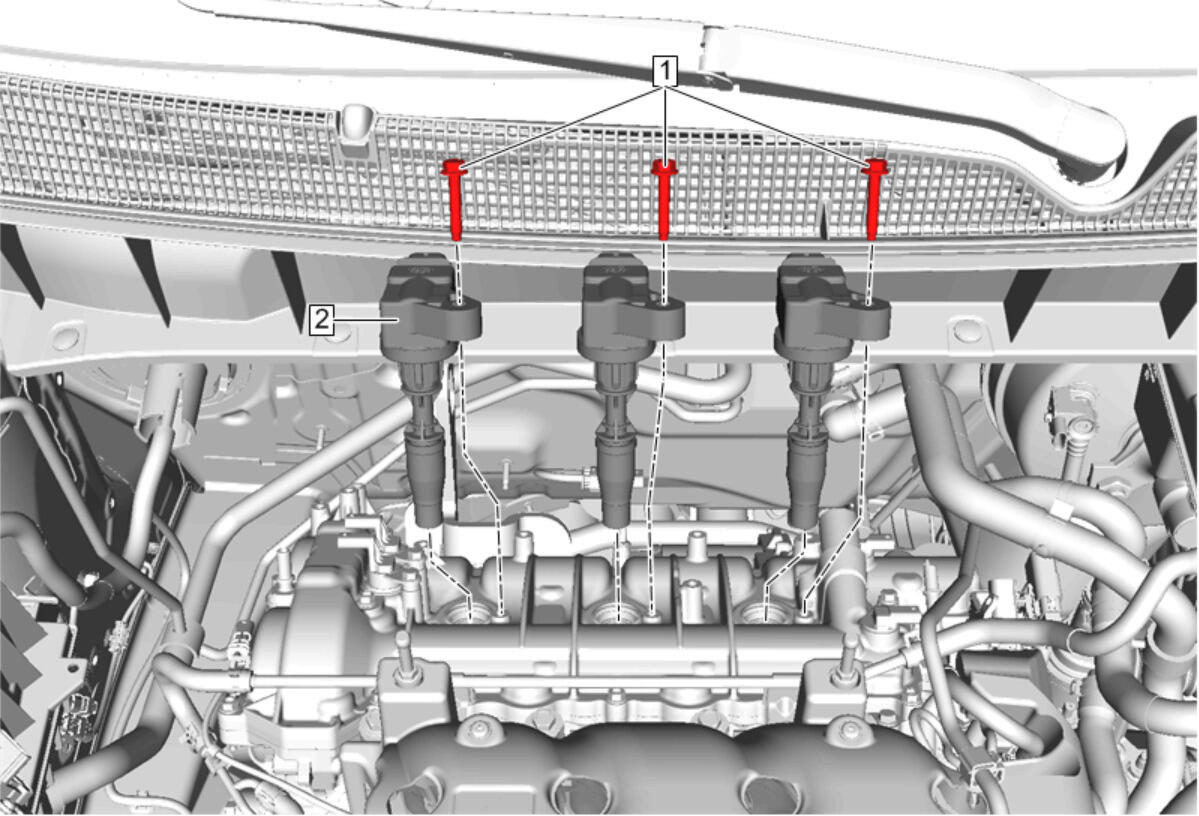

Fig 1: Ignition Coils - Bank 1

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Camshaft Housing Cover Insulator - Right Side. Refer to Camshaft Housing Cover Insulator Replacement - Right Side
1	Ignition Coil Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten to 10 N.m (89 lb in)
2	Ignition Coil (Qty: 3)
