Ignition Coil Replacement - Bank 2

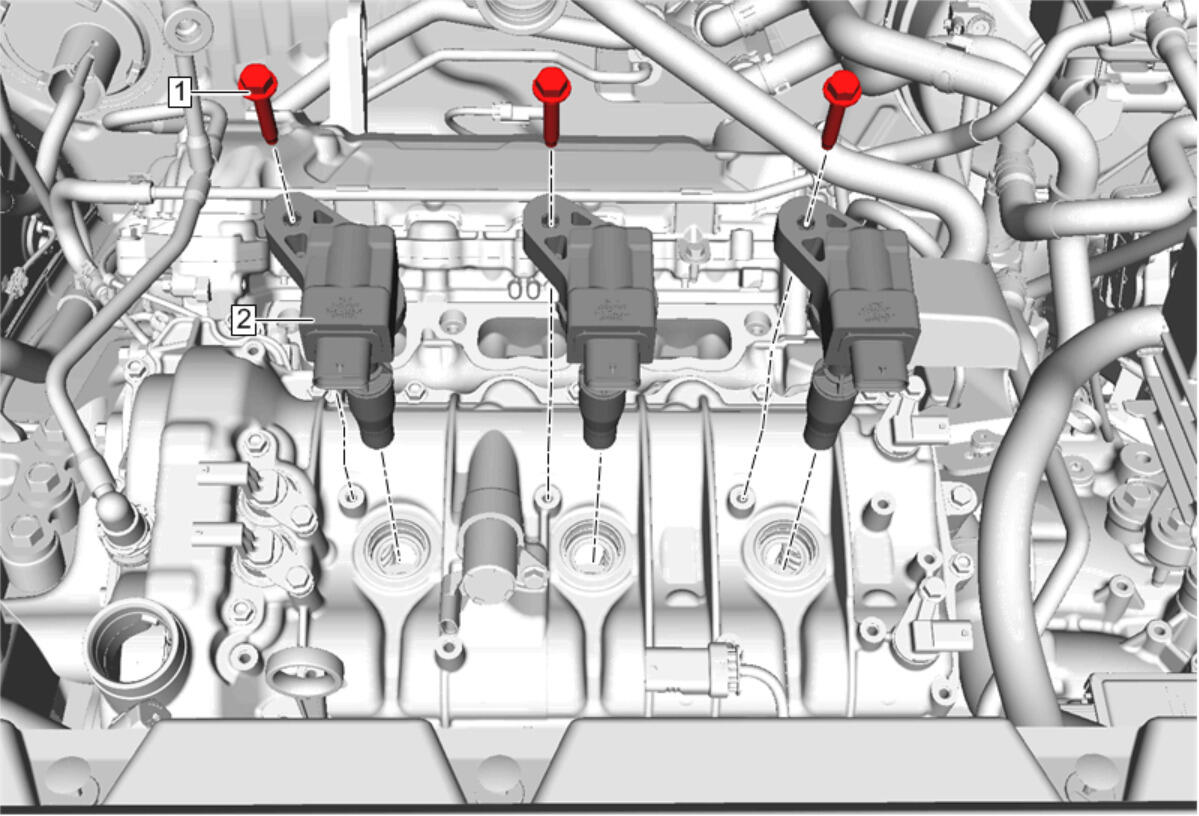

Fig 1: Ignition Coils - Bank 2

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Camshaft Housing Cover Insulator - Left Side. Refer to Camshaft Housing Cover Insulator Replacement - Left Side
1	Ignition Coil Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten to 10 N.m (89 lb in)
2	Ignition Coil (Qty: 3)
