Knock Sensor Shield Replacement (AWD)

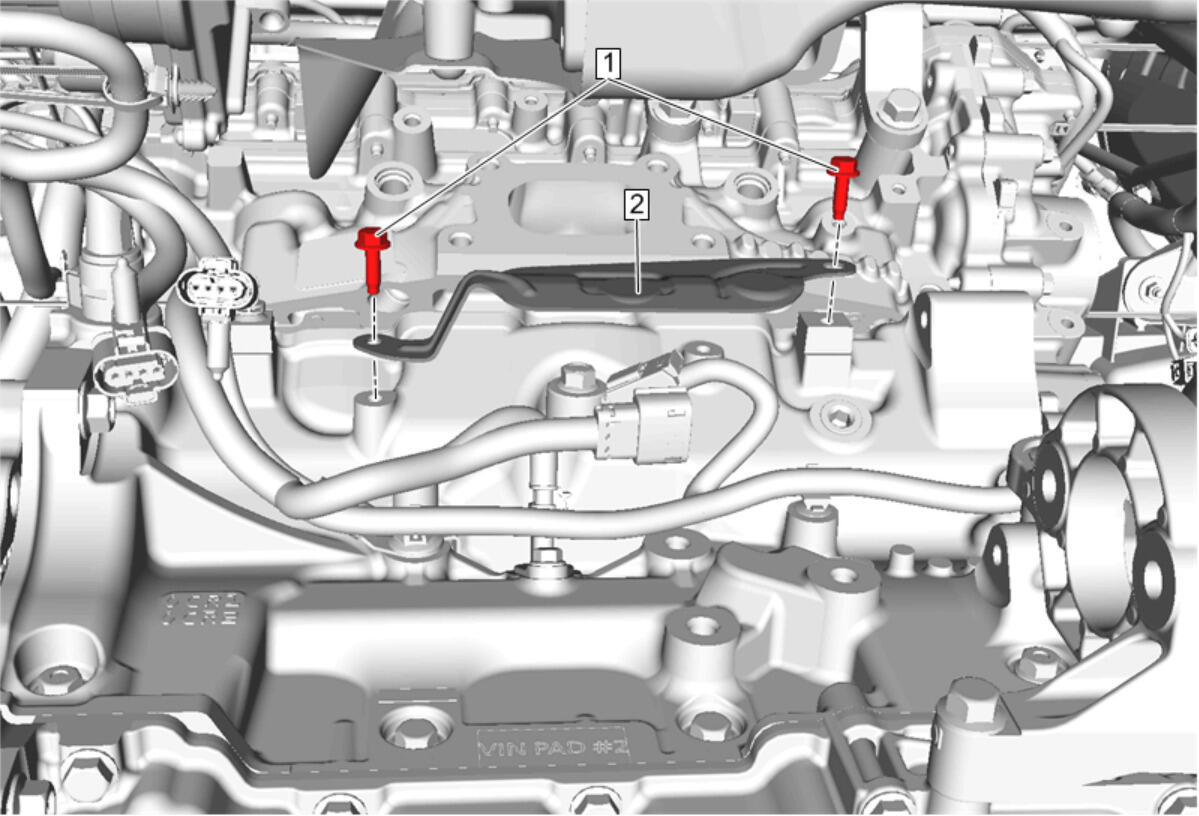

Fig 1: Knock Sensor Shield (AWD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Power Transfer Unit Case. Refer to Power Transfer Unit Case Replacement
1	Knock Sensor Heat Shield Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Knock Sensor Heat Shield
