Front Seat Belt Guide Adjuster Replacement

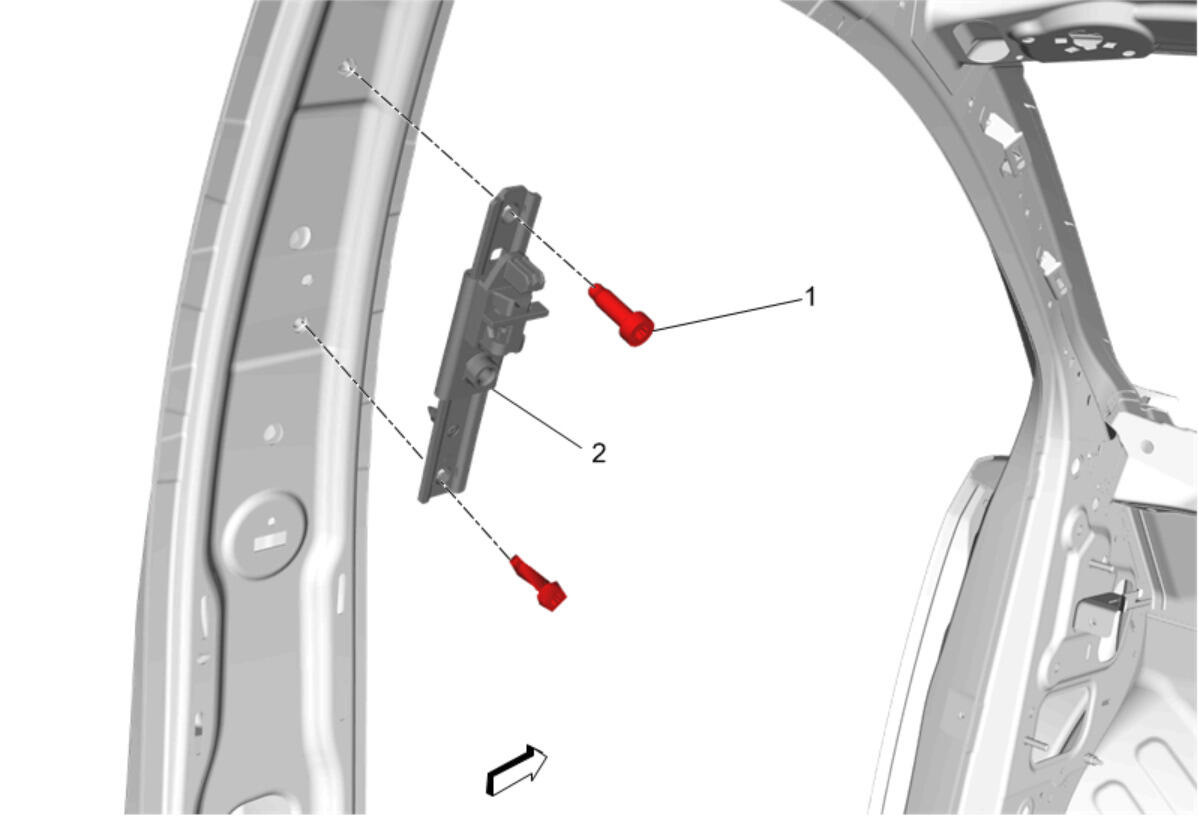

Fig 1: Front Seat Belt Guide Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat belt retractor D ring bolt. Refer to Front Seat Belt Retractor Replacement
1	Front Seat Belt Guide Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  45 N.m (33 lb ft)
2	Front Seat Belt Guide Adjuster
