Steering Gear Heat Shield Replacement

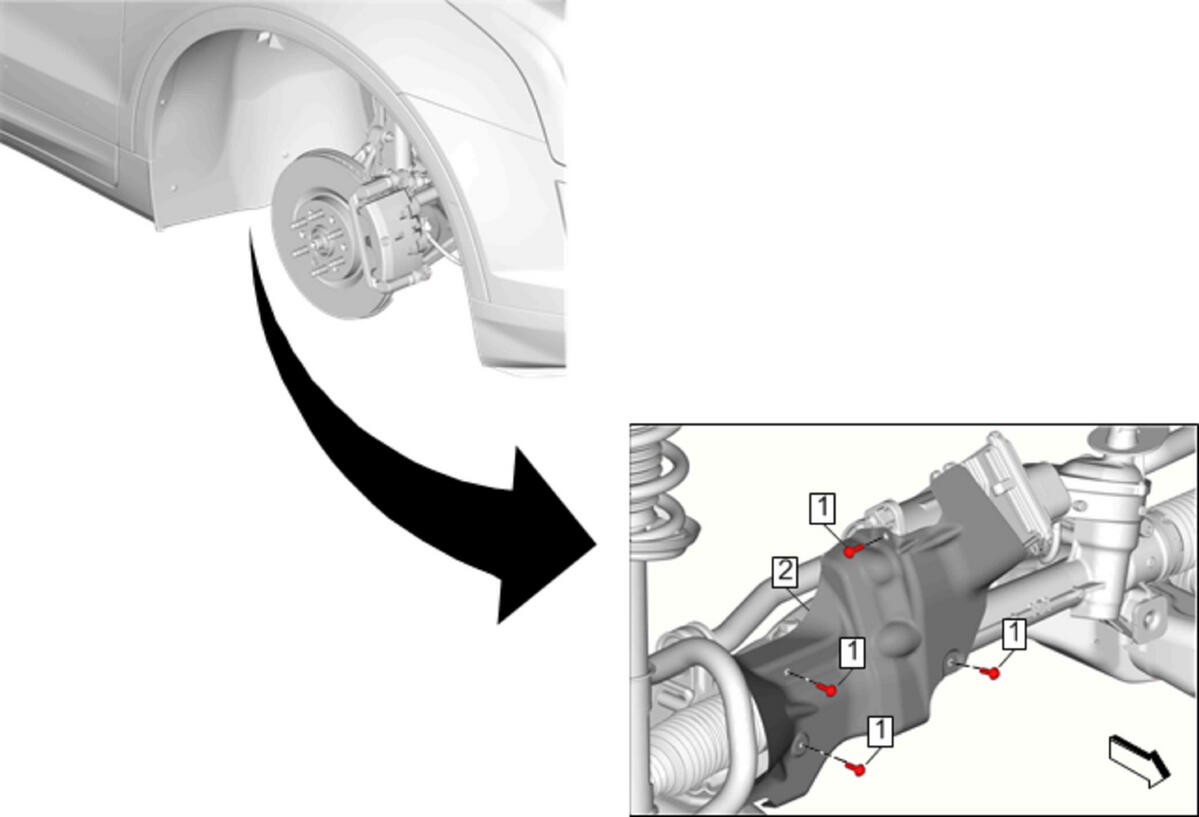

Fig 1: Steering Gear Heat Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Warm Up Three-Way Catalytic Converter - Rear. Refer to Warm Up Three-Way Catalytic Converter Replacement (Bank 1, LGX)Warm Up Three-Way Catalytic Converter Replacement (Bank 2, LGX)
1	Steering Gear Heat Shield Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  10 N.m (89 lb in)
2	Steering Gear Heat Shield
