Internal Components

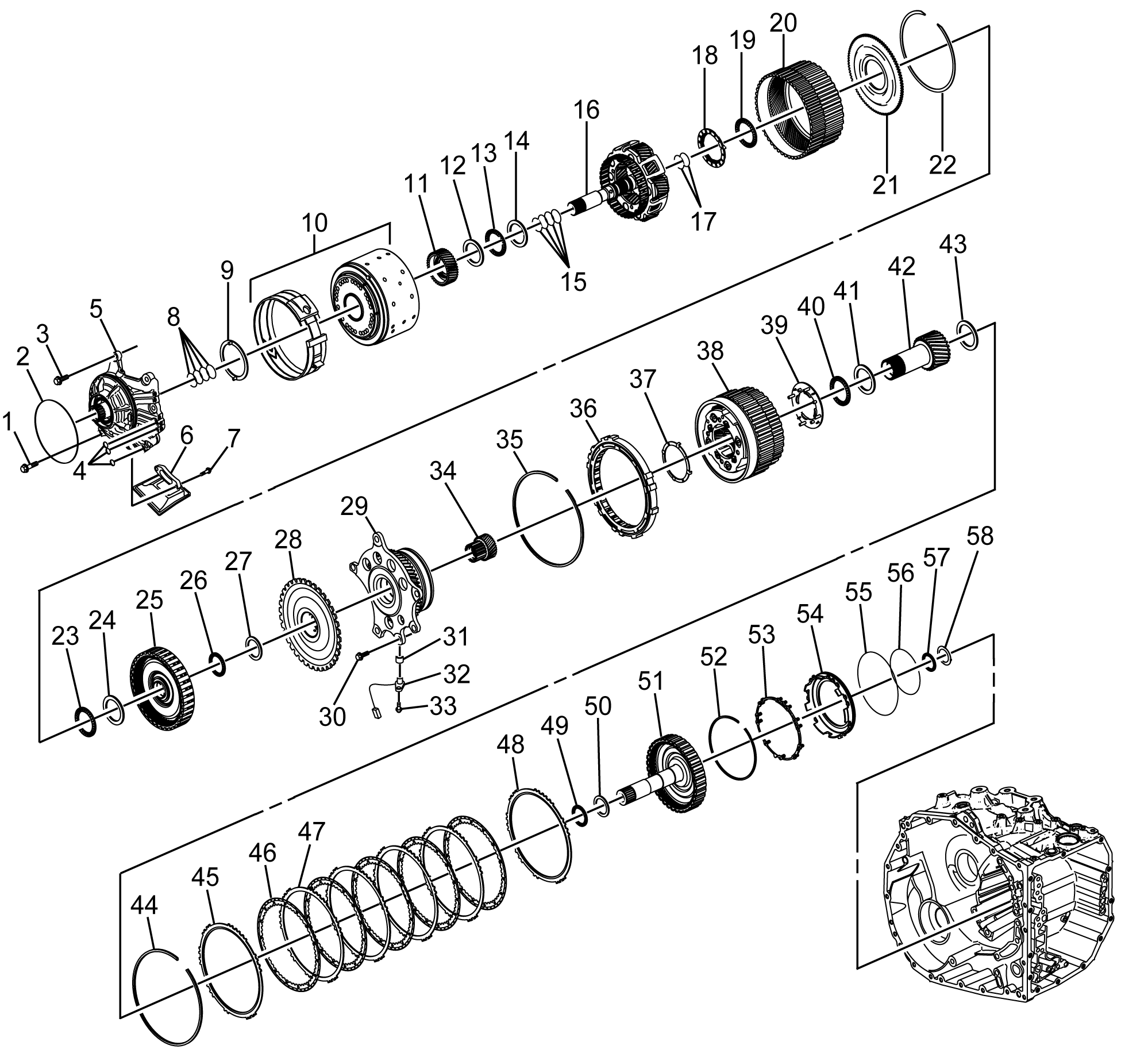

Fig 1: Internal Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Fluid Pump Bolt (Qty: 2)
2	Automatic Transmission Fluid Pump Bolt (Qty: 5)
3	Automatic Transmission Fluid Pump
4	Automatic Transmission Fluid Filter
5	Automatic Transmission Fluid Filter Bolt
6	Automatic Transmission Fluid Pump Shaft Thrust Washer
7	3rd Clutch
8	Front Sun Gear
9	Front Sun Gear Thrust Bearing Race
10	Sun Gear Thrust Bearing
11	Sun Gear Rear Thrust Bearing Race
12	Input Shaft Fluid Seal Ring (Qty: 3)
13	Front Carrier
14	Input Shaft Fluid Seal Ring (Qty: 4)
15	Front Carrier Thrust Bearing Race
16	Front Carrier Thrust Bearing
17	Front Internal Gear
18	Input Carrier Flange
19	Forward Clutch Backing Plate Retaining Ring
20	Input Clutch Housing Thrust Bearing
21	Forward Clutch Housing Thrust Bearing Race
22	Forward Clutch
23	Input Sun Gear Thrust Bearing
24	Sun Gear Front Thrust Bearing Race
25	Input Drum
26	Counter Drive Gear
27	Center Support Bolt
28	Vehicle Speed Sensor Spacer
29	Vehicle Speed Sensor
30	Automatic Transmission Intermediate Speed Sensor Bolt
31	Sun Gear
32	Overrun Clutch Retaining Ring
33	Overrun Clutch
34	Rear Carrier Thrust Washer
35	Rear Carrier
36	Rear Carrier Thrust Washer
37	Rear Sun Gear Thrust Bearing
38	Sun Gear Thrust Bearing Front Race
39	Rear Sun Gear
40	Sun Gear Rear Thrust Bearing Race
41	1-Reverse Clutch Backing Plate Retaining Ring
42	Forward Clutch Backing Plate
43	1st and Reverse Clutch Plate - Friction Plate
44	Forward Clutch Backing Plate
45	1st and Reverse Clutch Backing Plate
46	Direct Clutch Bearing
47	Direct Clutch Hub Thrust Bearing
48	Direct Clutch
49	Overrun Clutch Retaining Ring
50	1st and Reverse Clutch Spring
51	Low and Reverse Clutch Piston
