Transmission Control Module Installation

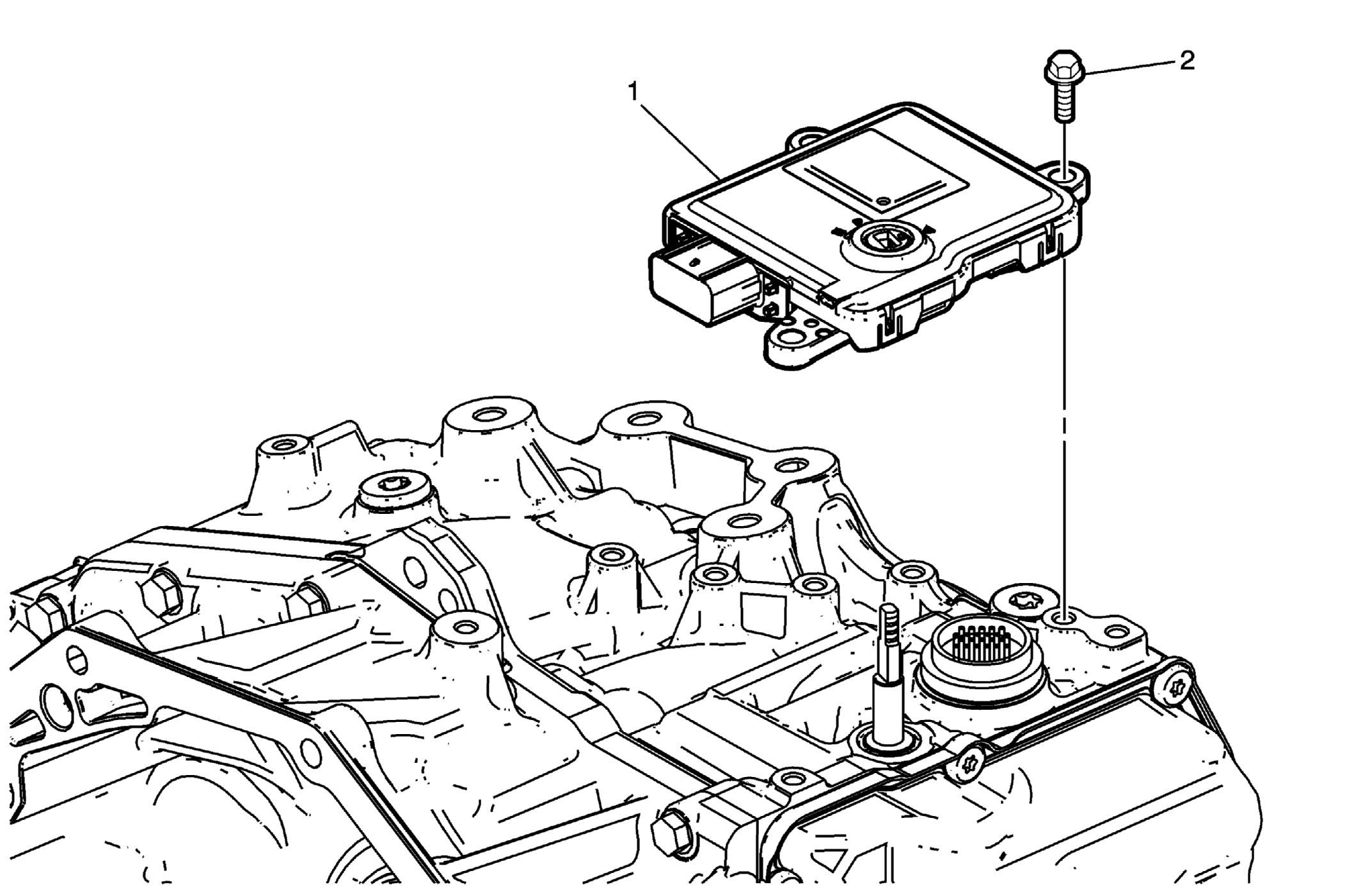

Fig 1: Transmission Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission Control Module
2	Transmission Control Module Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  25 N.m (18 lb ft)
