Transmission Fluid Cooler Pipe Fitting Replacement

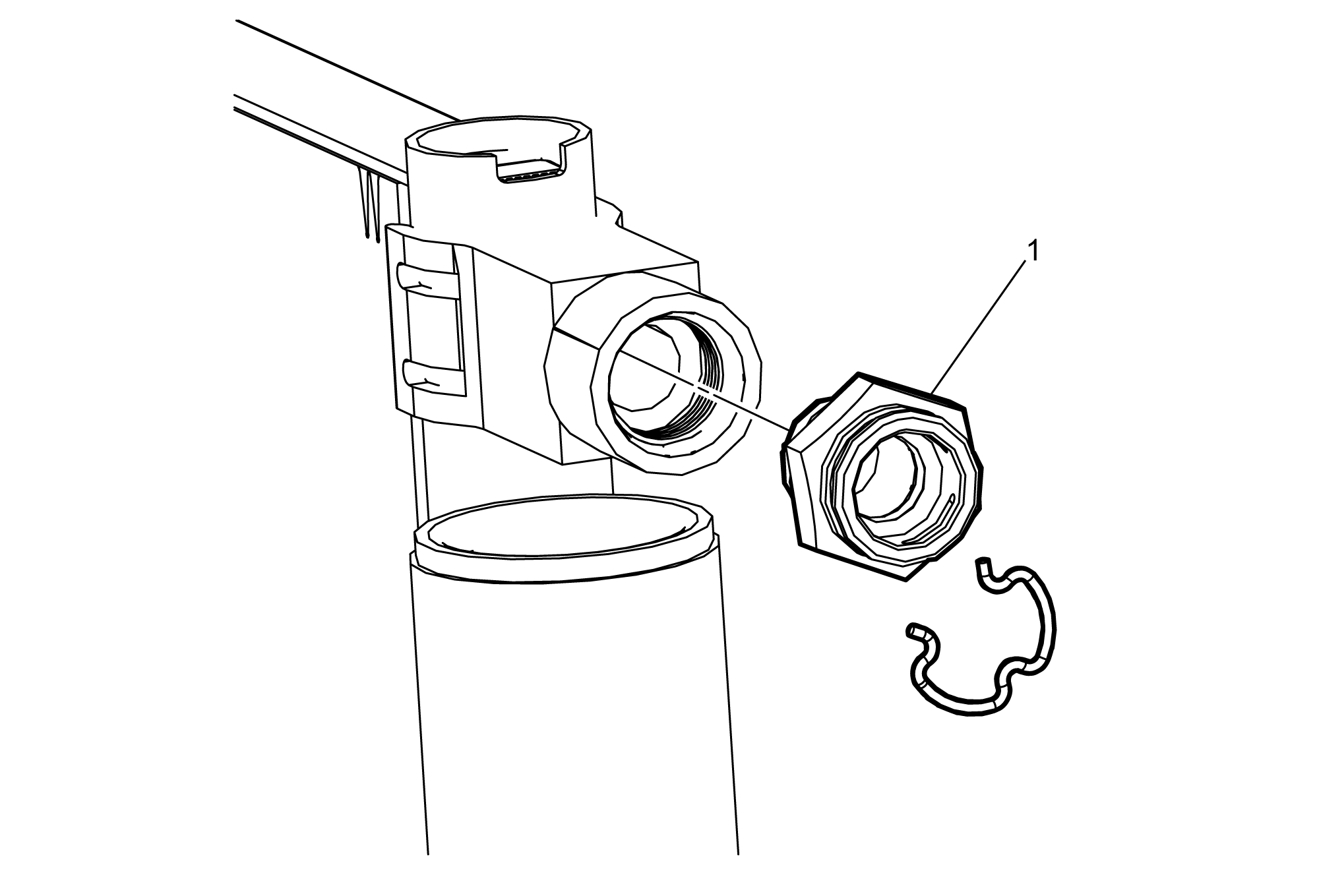

Fig 1: Transmission Fluid Cooler Pipe Connector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place a drain pan under the transmission fluid cooler pipe. Remove the transmission fluid cooler pipe from the auxiliary oil cooler. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection . Cap the fittings and plug the holes when removing the transmission fluid cooler pipe from the auxiliary oil cooler.
1	Transmission Fluid Cooler Pipe Connector CAUTION: Refer to Fastener Caution . Procedure Inspect the transmission fluid level. Inspect for transmission fluid leaks. NOTE: The correct thread engagement is critical, hand start the fitting. Cross-threaded fittings can achieve proper tightness and still leak. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

Place a drain pan under the transmission fluid cooler pipe.
Remove the transmission fluid cooler pipe from the auxiliary oil cooler. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
Cap the fittings and plug the holes when removing the transmission fluid cooler pipe from the auxiliary oil cooler.

Transmission Fluid Cooler Pipe Connector

CAUTION:

Procedure

NOTE:

The correct thread engagement is critical, hand start the fitting. Cross-threaded fittings can achieve proper tightness and still leak.

Tighten
20 N.m (15 lb ft)
