USB Signals to Human Machine Interface Control Module
USB Signals to Human Machine Interface Control Module

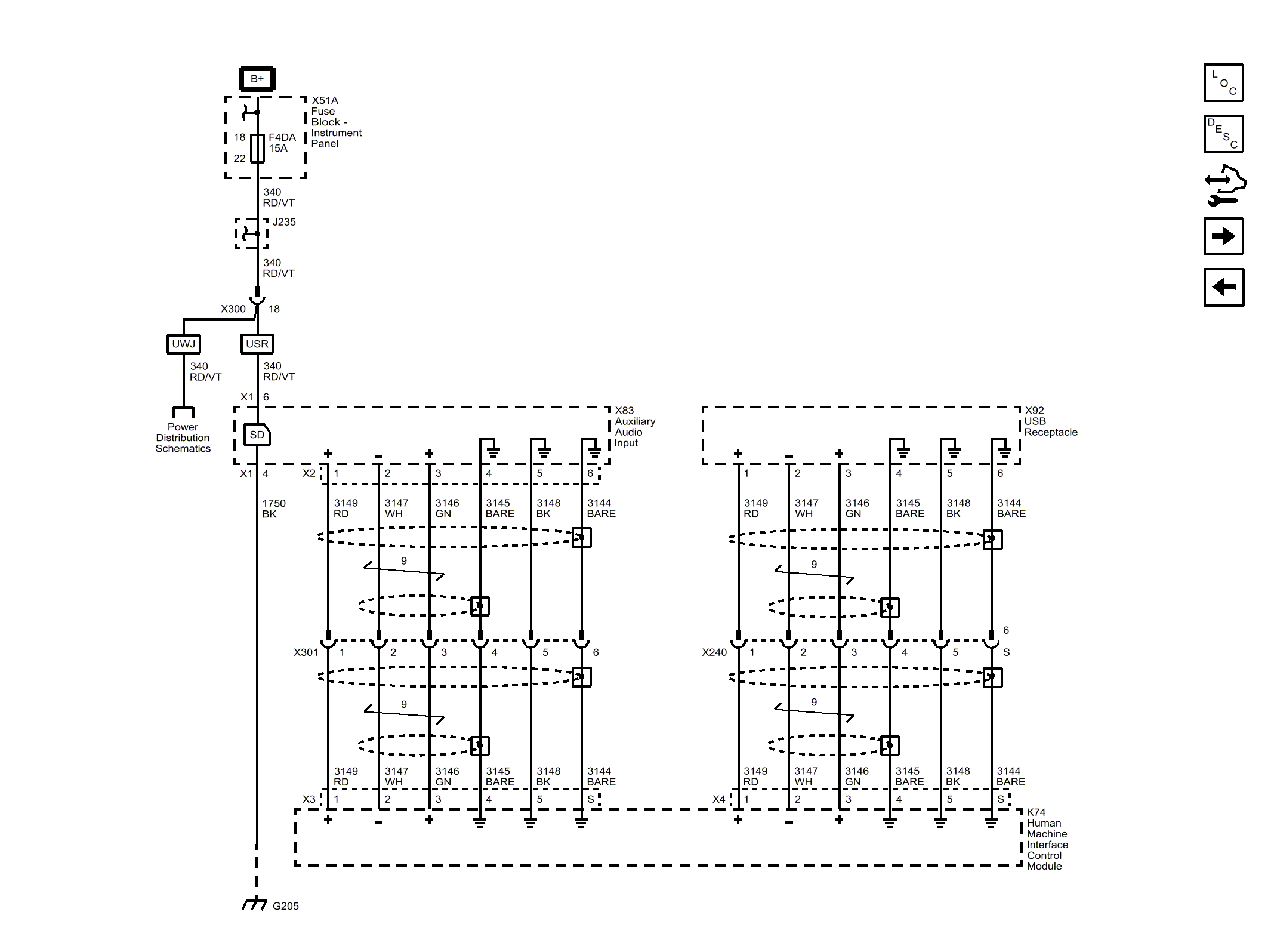

Fig 1: USB Signals to Human Machine Interface Control Module
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
